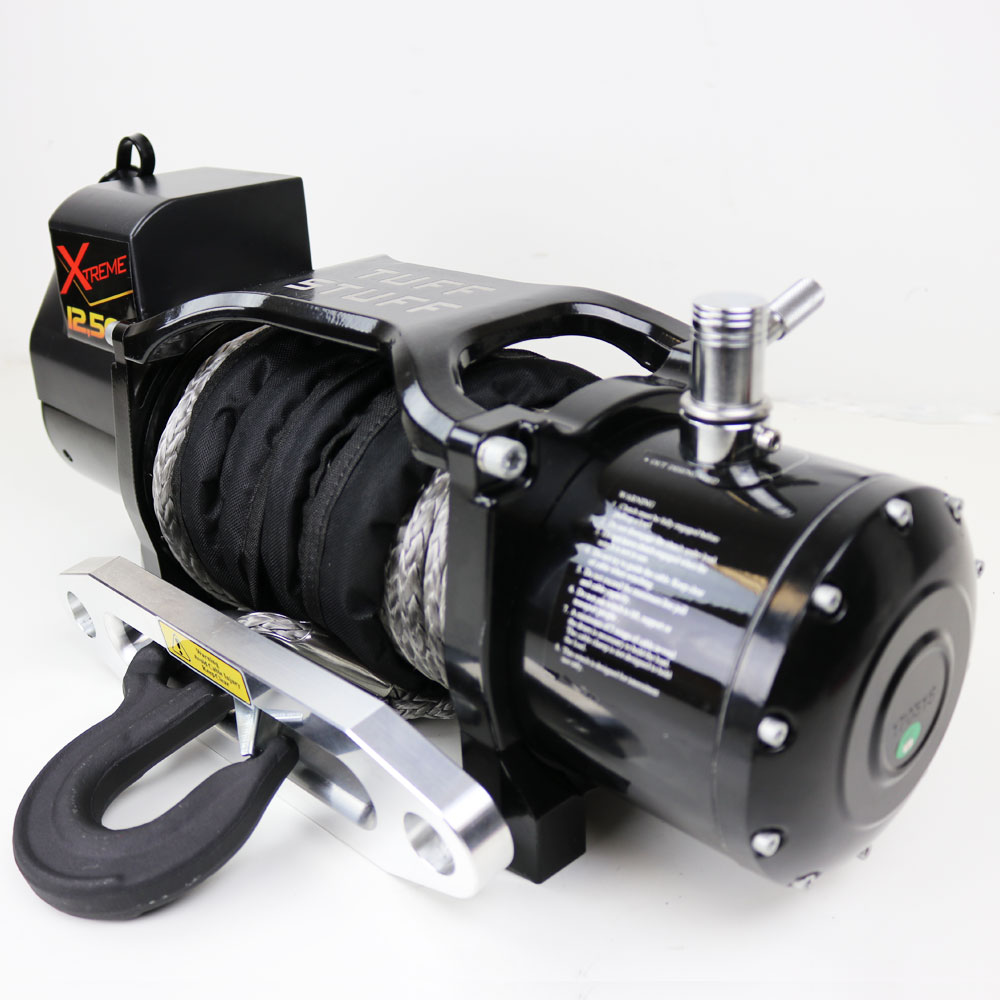

Our best winch, just got even better! Now, the Tuff Stuff Xtreme comes with a grey synthetic rope and a hawse fairlead to maximize strength, lower the weight and help ease the task of self recovery on the trail. All while still providing the same quality you've come to expect from the Tuff stuff Xtreme!
With its heavy internal components, waterproof seals the Tuff Stuff Xtreme series is even more durable than the competition yet extremely affordable for such high standards.
The Tuff Stuff X-treme has been designed to stand up against the best winches in it's class and and survive any of the harsh elements you can throw its way. Tuff Stuff's exclusively designed control box is built to protect all of it's electronics, which is the life line of any electric winch. Using only the best quality electronics in the business, the Tuff Stuff Xtreme winch will last for years to come, and still retains the Best warranty in the business.
The Tuff Stuff X-treme uses all rubber seals to keep this motor water tight to protect your investment from water, mud, snow and other damaging elements your winch may come into contact with.Tuff Stuff has also increased the height of the drum support to allow more room for it's 88 foot of 3/8 inch cable.
This improved design has been implemented to eliminate damage to the winch body when the cable stacks up unevenly on the drum. This design was originally built to Military standards for longer thicker cables, which is the grade performance Tuff Stuff demands for their customers!
Included With The 12,500Lb Xtreme Winch:
- 12,500Lb Winch
- Aluminum Fairlead
- Synthetic Rope and Hook
- Wired Plug In Remote
- Wireless Remote (Pre-Wired)
- 8 Ton Snatch Block
- Waterproof Cover
- Waterproof Winch Details:
- 6.65HP Motor for X-Treme pulling performance
- 12,500Lbs Capacity to recover most vehicles
- Waterproof Seals to prevent water damage
- 88 foot of 3/8 inch synthetic rope
- Powers in and out
- Built in heavy duty braking system for safety while winching
- Free Wireless Remote with 75 foot+ radius
- High output waterproof solenoid for optimal performance and efficiency
- 6 foot of positive/negative 2 gauge battery cable included for easy installation
- Heavy Duty Clevis hook tested to over 26,000Lbs of force
12,500Lb Synthetic Winch Specifications:
- Single line rated pull: 12,500 lbs (5682 kg)
- Motor: 6.65 hp/5.0 kw, Series Wound
- Control: Remote switch,12 ft (3.7 m) lead
- Gear train: 3 Stage Planetary
- Gear reduction ratio: 265.2:1
- Clutch: Sliding Ring Gear
- Braking Action: Automatic In-The-drum
- Drum size Diameter: 2.52 inch (64 mm) Length 8.82 inch (224 mm)
- Rope: 88 foot of 3/8 inch diameter Synthetic rope (27 m of 9.5 mm diameter)
- Fairlead: Aluminum Hawse Fairlead
- Remote control: Wireless and Wired Included
- Recommended battery: 650CCA,130 Minutes Reserve Capacity minimum
- Battery leads: 2 Gauge - 72 inch (1.83 m) each
- Finish: Black
- Weight: (NW/GW) 73 lbs /81.5 lbs (33.11 kg/37 kg)
- Overall Dimensions: 20.5 inch L x 6.75 inch W x 10 foot H (521 X 171 X 254MM)
- Mounting Bolt Pattern: 10.00+/-0.015 inch x 4.50+/-0.010 inch +/- (254 x 114.3 mm)
