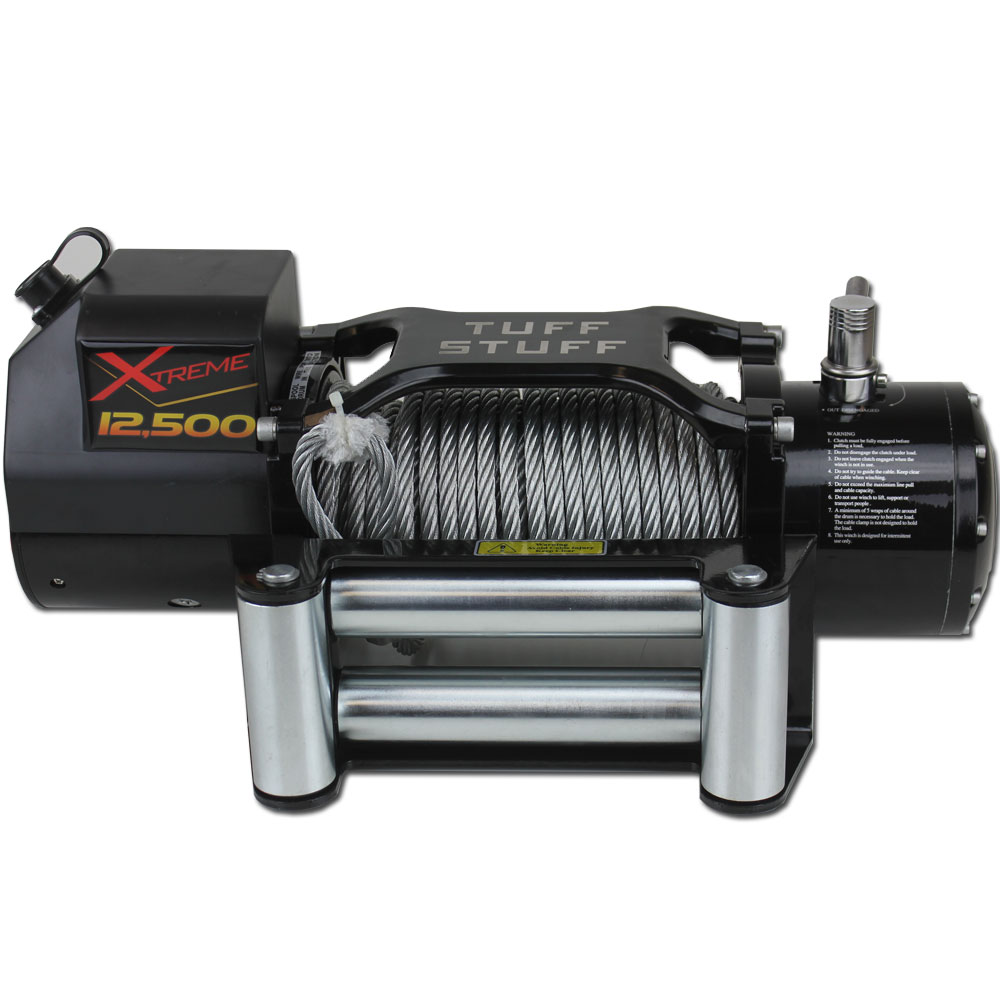

12,500 LB Winch W/ 88 fT Wire Waterproof Xtreme Tuff Stuff Overland

What makes the Tuff Stuff X-treme stand up against the rest is its ability to be fully submerged and undergo all of the elements you can throw its way. Tuff Stuff foots exclusively designed control box is intended to protect all of it foots electronics, which is the life line of any electric winch.

Using only the best electronics in the business, the Tuff Stuff Xtreme winch will last for years to come, and still retains the BEST WARRANTY in the business. Tuff Stuff uses additional seals to keep this motor water tight to protect your investment from water, mud, snow and other damaging elements.Tuff Stuff has also increased the height of the drum support to allow more room for it foots 88 foot of 3/8 inch cable. This design was originally built to Military standards for longer thicker cables, which is the grade performance

Tuff Stuff demands for their customers! There are not many products that have been OFF-ROAD tested and Approved. Many of these products that we have on the market by TUFF STUFF are BAJA TESTED and approved by many race teams. There is no tougher place than Baja California and the terrain is some of the worst in the world. If we approve a product it will withstand the toughest conditions. Trust products that have been tested and approved.
Tuff Stuff Xtreme Features / Benefits:

• 6.65HP Motor for X-Treme pulling performance
• 12,500Lbs Capacity to recover most vehicles
• Waterproof Seals to prevent water damage
• 88 foot of 3/8 inch Aircraft quality steel cable
• Power In and out
• Free Spool
• Built in heavy duty braking system for safety while winching
• FREE Wireless Remote with 75 foot+ radius
• High output waterproof solenoid for optimal performance and efficiency
• 6 foot of positive/negative 2 gauge battery cable included for easy installation
• Rubber Line Stopper to eliminate damaging the rollers with the hook
• Heavy Duty Clevis hook tested to over 26,000Lbs of force

TUFF STUFF XTREME 12,500LB WINCH:

• Single line rated pull 12,500 lbs (5682 kg)
• Motor 6.65 hp/5.0 kw, Series Wound
• Control Remote switch,12 ft (3.7 m) lead
• Gear train 3 Stage Planetary
• Gear reduction ratio 265.2:1
• Clutch Sliding Ring Gear
• Braking Action Automatic In-The-drum
• Drum size Diameter 2.52 (64 mm) Length 8.82 (224 mm)
• Cable 88 foot of 3/8 diameter (27 m of 9.5 mm diameter)
• Fairlead 4-Way Roller Fairlead
• Remote control Included
• Recommended battery 650CCA,130 Minutes Reserve Capacity minimum
• Battery leads 2 Gauge – 72(1.83 m) each
• Finish Black
• Weight (NW/GW) 93.5 lbs /102.3 lbs (42.5 kg/46.5 kg)
• Overall dimensions 20.5 L x 6.75 W x 10 H (521 x 171 x 254 mm)
• Mounting Bolt Pattern 10.00+/-0.015 x 4.50+/-0.010 +/- (254 x 114.3 mm)
