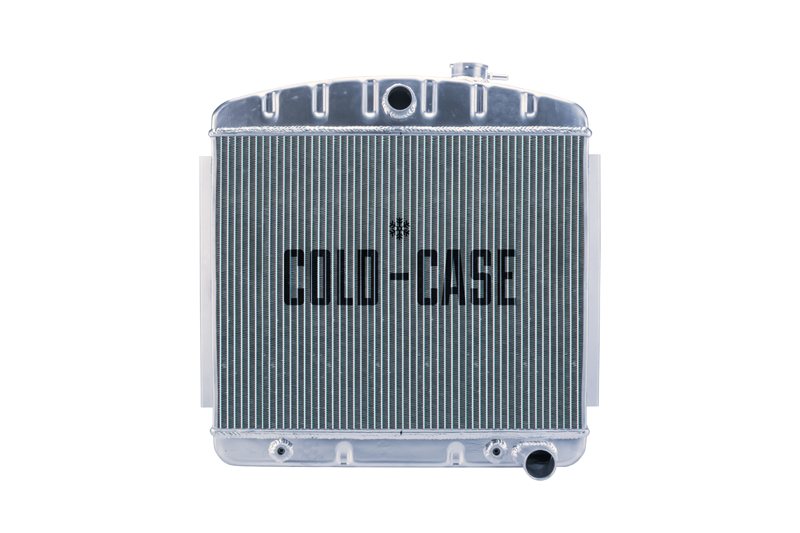

55-57 Tri-5 Chevy Aluminum Radiator (V8 Mount) Cold Case Radiators

1955-1957 Chevrolet Tr-Five Aluminum Performance Radiator. V8 Position cars for mount Behind radiator support. There is not enough space to put a clutch fan on the front of a SB and still mount the radiator in the V8 position. There is a 6 blade stationary and 7 blade flex fan you can use though.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For manual/auto trans
• Direct fitment for 55-57 Chevy (V8 position mount)
• Old Part Number: RPE562

Radiator Specs

• Core Height 17 inch
• Core Width 22 inch
• Overall Height 23.5 To Cap
• Overall Width 23.5 inch
• Overall Thickness 3 inch
• Tubes (2) 1.25" Tubes
• Upper Hose 1.50 inch
• Lower Hose 1.75 inch
