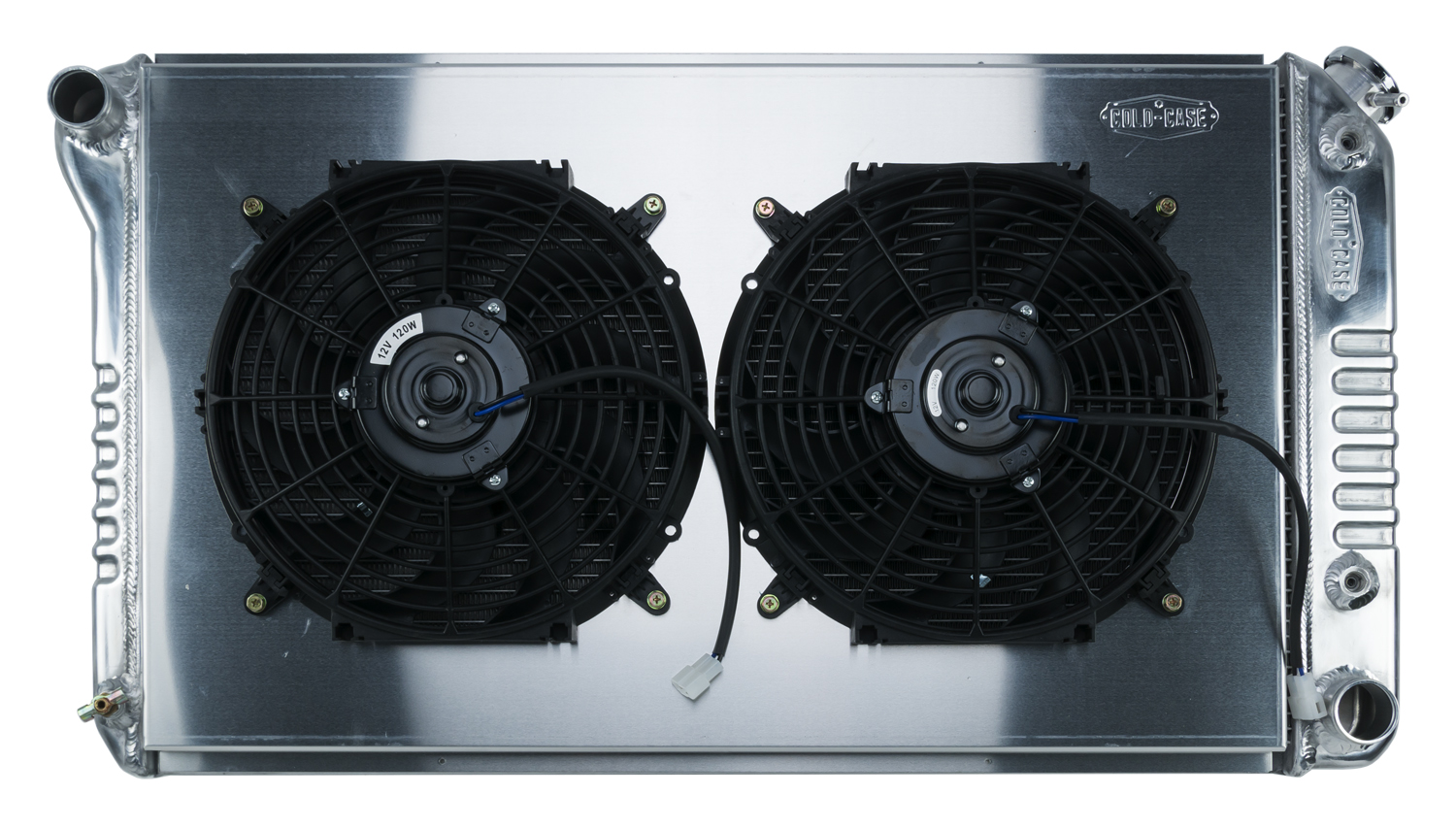

68-77 A-Body Aluminum Radiator Automatic Dual 14 Inch Fan Kit Cold Case Radiators

1968-1977 GM A-Body Aluminum Performance Radiator with 14 Inch Fan Kit. Automatic Transmission Cars. For Olds 442, see GMA43A. When you need the biggest and best, look no further than the Cold Case Super Duty Line.

All Super Duty kits include 2 row radiators with 1.25 Inch tubes, aluminum fan shroud and dual 14 Inch fans, flowing at 2200cfm per fan!

For extreme horsepower applications OR if you just want the best of the best. Also fits 69-71 Grand Prix. On some GTO,Tempest, Lemans, this kit will need custom mounts as the original shroud typically holds in the radiator.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• (2) 1.25 inch Rows
• All Aluminum
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For auto trans (auto-trans-cooler)
• Direct fitment for 68-77 GM A-Body

Radiator Specs

• Core Width 28.7 inch
• Core Height 18.5 inch
• Overall Width 34.75 inch
• Overall Height 18.75 inch
• Overall Thickness 3 inch
• Upper Hose 1.5 inch
• Lower Hose 1.5 inch
• Tubes (2) 1.25 inch Tubes
• Trans Cooler Fitting: 5/16 Inch Inverted Flare
