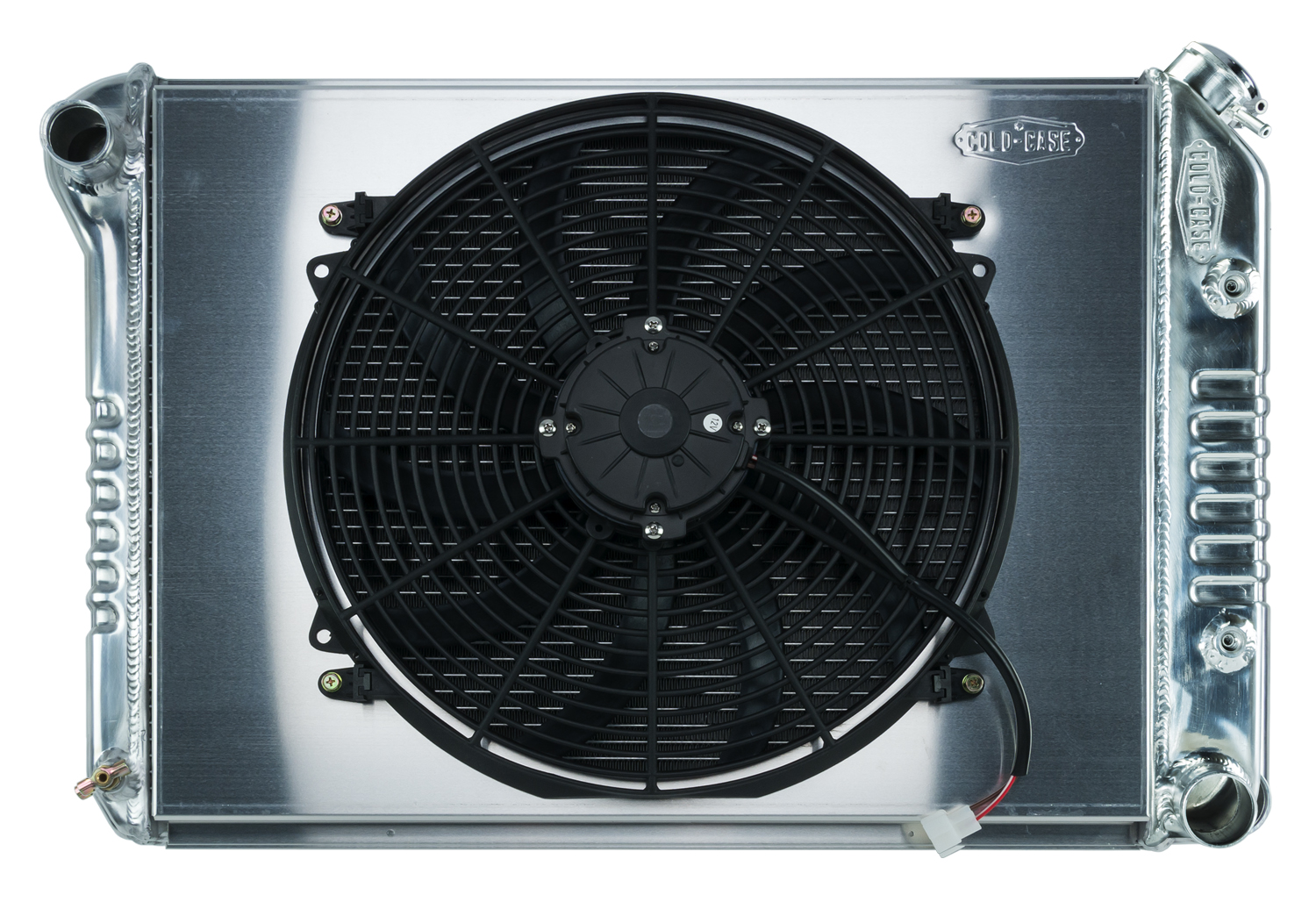

68-79 Nova BB Aluminum Performance Radiator And 16 Inch Fan Kit AT Cold Case Radiators

68-79 Nova BB Aluminum Performance Radiator And 16 Inch Fan Kit AT Transmission. Big Block version. Comes without brackets. For bracket version, see CHC11AK.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• Fan Diameter 16 Inch
• All Aluminum
• Polished OE style tanks
• (2) 1.25 inch Tubes
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For automatic transmission
• Direct fitment for 68-79 Nova w/ Big Block
• Old Part Number: RPE548ATFK

Radiator Specs

• Core Height 16.85 inch
• Core Width 23 inch
• Overall Height 19 inch
• Overall Width 28.35 inch
• Overall Thickness 3 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.50 inch
• Lower Hose 1.77 inch
