70-81 Camaro/Firebird LS Swap Aluminum Performance Radiator Cold Case Radiators

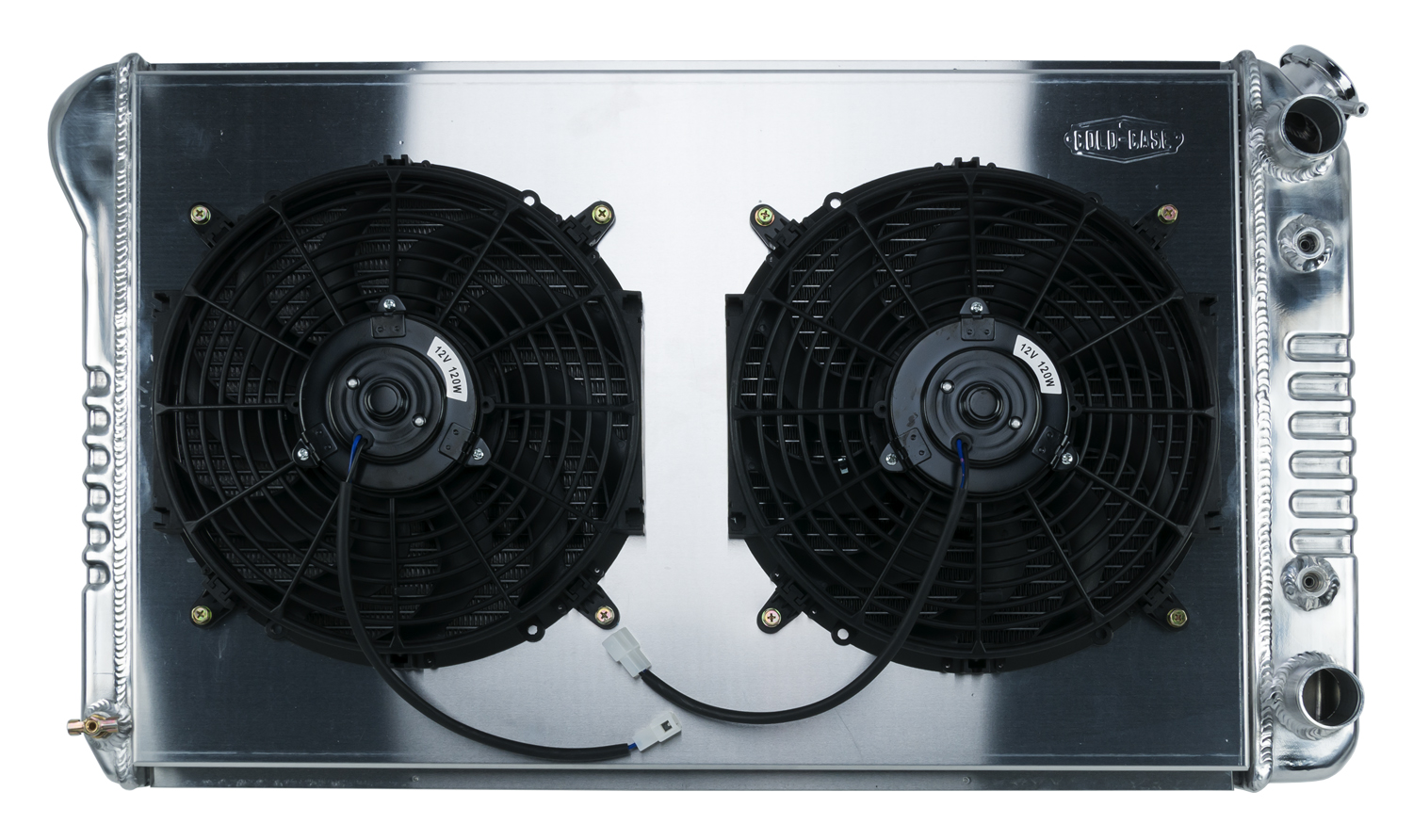

70-81 Camaro/Firebird LS Swap Aluminum Performance Radiator And 12 Inch Fan Kit.

Firebird applications will need mounting brackets.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• Fan Diameter 12 Inch
• All Aluminum
• 2 rows of 1.25 inch tubes
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• Direct fitment for 70-81 Camaro/Firebird/Trans Am with LS motors
• Old Part Number: RFE557AK

Radiator Specs

• Core Height 18.4 inch
• Core Width 27.5 inch
• Overall Height 19 inch
• Overall Width 33.2 inch
• Overall Thickness 6 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.57 inch
• Lower Hose 1.57 inch
