8-Circuit Source SE w/ Touchscreen w/ 90 Source Mounting Bracket for 2004 and Older Toyota Trucks and Gen I Tacoma's sPOD

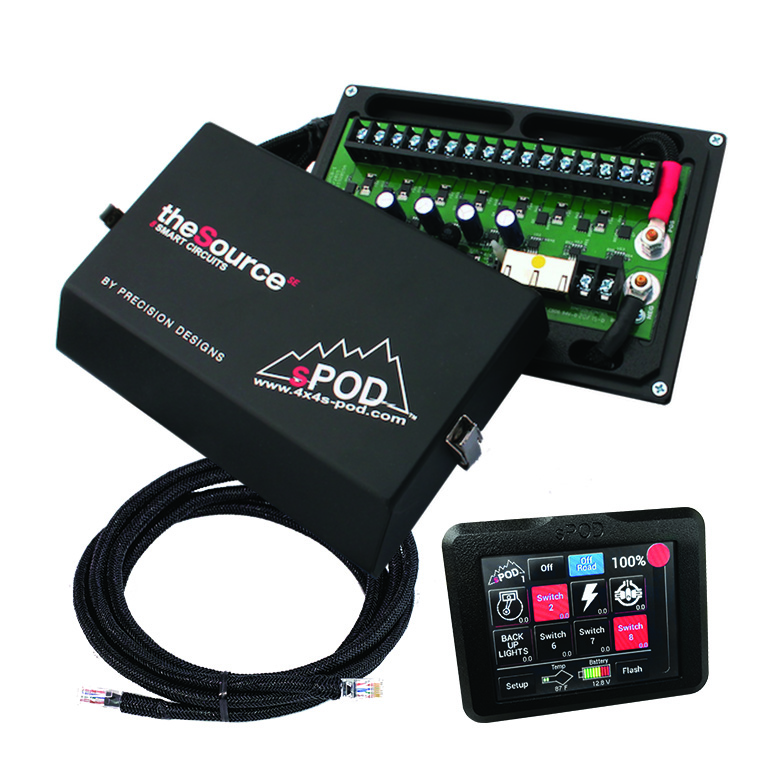

8-Circuit Source SE w/ Touchscreen w/ 90 Degrees Source mounting bracket for 2004 and older Toyota Trucks and Gen I Tacoma's. sPOD systems utilize automotive grade approved high-power, high-temp, ultra-reliable components with a maximum 100 amp capacity!

The sPOD SourceSE is a Solid-State fully programmable digital CAN-Bus controlled system utilizing state-of-the-art technologies. OEM vehicle specific simple installation hardware, engineered and 100 percent manufactured in the United States since 2006.

Notes:

• The Touchscreen will go into Deep Sleep after 6 hours of inactivity (ie: no usage of the HD or not running the engine). Once in deep sleep, the HD will turn off any accessories that were left on (including refrigerators!).
• The touchscreen is not weather resistant and should not be exposed to the elements. Water or any liquids will damage the touchscreen and void the warranty.

The touchscreen controller is small but packs a big punch! (3-3/4w X 2-7/8h X 5/8 thk) The control module is a 3.5-inch LED-backlit TFT LCD screen with a resolution of 320 x 240, 16.7m colors and a viewing angle of 180 degrees housed in a billet aluminum case.

Touchscreen comes with its own universal mounting bracket. The connection between the SourceSE and the touchscreen uses a standard Ethernet cable 10 feet long. The industry leader in power and control solutions.
Included:

• SourceSE w/ 90 degree mounting bracket and necessary hardware (Note: Drilling into drivers side inner fender is required for supplied hardware)
• 84 inch Battery Cables (for later model Tacoma's, 4Runner's and Tundra's, please request 36 inch long battery cables)
• Inline 50amp auto reset Circuit Breaker
• 10 Foot Ethernet control cable
• Touchscreen Controller w/ mounting bracket (see picture) and necessary hardware (other universal mounting options are available)
• Installation Instructions

Benefits:

• Reduced installation time and labor allowing for mounting and connection of eight switches at one time versus individually.
• Reduced wire harness complexity, using one harness to our controller to accommodate up to 32 circuits.
• Reduced harness size offers an overall reduction in weight, improving the operational efficiency of the equipment.
• Increase in switch lifecycle over traditional electromechanical switches.

Each switch is programmable for:

• Dimming
• Strobe
• Flash
• Momentary
• Switch Linking
• On Road and Off Road mode of operation

Touchscreen Control Module Features:

• Voltage feedback (vehicles battery/alternator voltage)
• SourceSE board temperature feedback (shown on screen)
• Customization: legends (3 lines of text)
• Automatic backlighting off after 30 minutes of being inactivity
• Automatic power off after 6 hours of being inactive or engine not running (Deep sleep mode)
• One touch off function
• One second hold on off button shuts all circuits down
• Automatic system shut down when the touchscreen is unplugged
• Backlight dimming
• Multiple Source select (One touchscreen can control up to 32 circuits)
• Comes with its own universal mounting bracket

Options:

• RAM-201U Double Socket Arm for 1 inch RAM Ball (Must have this in order to mount touchscreen)
• RAM-238U Base with 1 inch RAM Ball (For fixed surface mounting and interconnect between double socket arm)
• RAM-224-1U Suction Cup Base with 1 inch RAM Ball (For fixed surface mounting and interconnect between double socket arm)
• 8-700-BT Add-on Bluetooth module to enable the system to be controlled by smartphones and tablets (Optional)

Notes:

• Please indicate if you are running LUX Lighting Systems LED lights. We will include a resistor that is required in order for the lights to function properly.
• The primary reason for the Bluetooth integrated into the Touchscreen is for programming purposes, and not for remote control due to the limited range.
• Touchscreen housings are precision machined billet aluminum which contributes to the distance limitations.
• Ranges may vary from 5 feet up to 15 feet depending on the location of the Touchscreen, the surroundings, phone type, phone cover, and many other variables.
