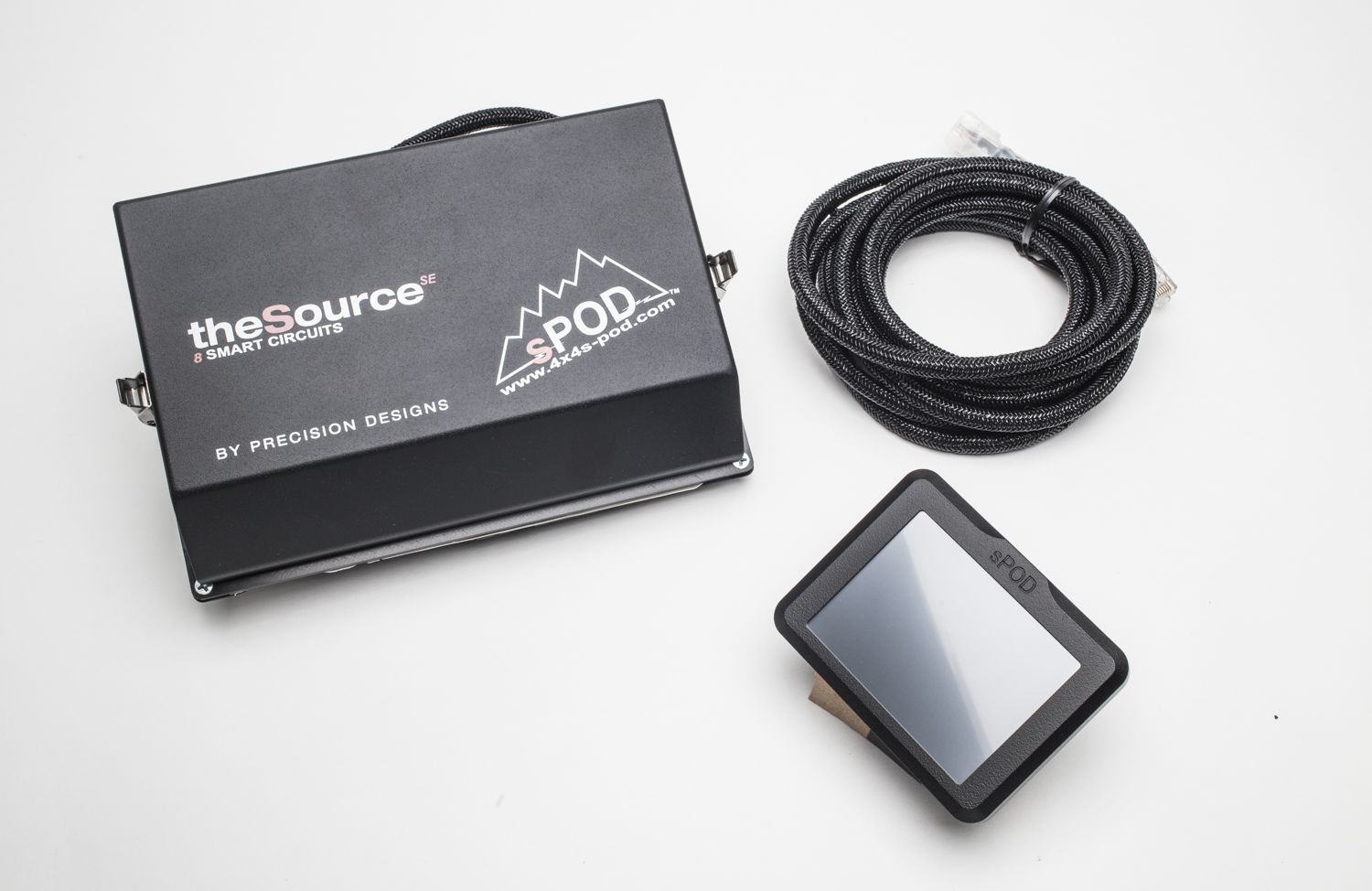

8-Circuit Source SE W/Touchscreen for 07-18 Jeep Wrangler JK sPOD

8-Circuit SourceSE with Touchscreen for 2007-2018 Jeep Wrangler JK. sPOD: The industry leader in power and control solutions. sPOD systems utilize automotive grade approved high-power, high-temp, ultra-reliable components with a maximum 100 amp capacity!

The sPOD SourceSE is a Solid-State fully programmable digital CAN-Bus controlled system utilizing state-of-the-art technologies. OEM vehicle specific simple installation hardware, engineered and 100 percent manufactured in the United States.

The touchscreen controller is small but packs a big punch! (3-3/4w X 2-7/8h X 5/8 thk) The control module is a 3.5-inch LED-backlit TFT LCD screen with a resolution of 320 x 240, 16.7m colors and a viewing angle of 180 degrees housed in a billet aluminum case.

The Touchscreen comes with its own universal mounting bracket. The connection between the SourceSE and the touchscreen uses a standard Ethernet cable 10 feet long.

Notes:

• The touchscreen is not weather resistant and should not be exposed to the elements. Water or any liquids will damage the touchscreen and void the warranty.
• The Touchscreen will go into Deep Sleepќ after 6 hours of inactivity (ie: no usage of the HD or not running the engine). Once in deep sleep, the HD will turn off any accessories that were left on (including refrigerators!).

Benefits:

• Reduced installation time and labor allowing for mounting and connection of eight switches at one time versus individually.
• Reduced wire harness complexity, using one harness to our controller to accommodate up to 32 circuits.
• Reduced harness size offers an overall reduction in weight, improving the operational efficiency of the equipment.
• Increase in switch lifecycle over traditional electromechanical switches.

Each switch is programmable for:

• Dimming
• Strobe
• Flash
• Momentary
• Switch Linking
• On Road and Off Road mode of operation

Touchscreen Control Module Features:

• Voltage feedback (vehicles battery/alternator voltage)
• SourceSE board temperature feedback (shown on screen)
• Customization: legends (3 lines of text)
• Automatic backlighting off after 30 minutes of being inactivity
• Automatic power off after 6 hours of being inactive or engine not running (Deep sleep mode)
• One touch off function
• One second hold on off button shuts all circuits down
• Automatic system shut down when the touchscreen is unplugged
• Backlight dimming
• Multiple Source select (One touchscreen can control up to 32 circuits)
• Mounting bracket included

Options:

• RAM-201U Double Socket Arm for 1 inch RAM Ball (Must have this in order to mount touchscreen)
• RAM-238U Base with 1 inch RAM Ball (For fixed surface mounting and interconnect between double socket arm)
• 8-700-PSA A-Pillar Mount with 1-inch rubber coated Ram Ball. (For fixed surface mounting and interconnect between double socket arm)
• RAM-224-1U Suction Cup Base with 1 inch RAM Ball (For fixed surface mounting and interconnect between double socket arm)
• 8-700-BT Add-on Bluetooth module to enable the system to be controlled by an iPhone, iPad or iPad Mini (Optional)

Notes:

• Please indicate if you are running LUX Lighting Systems LED lights. We will include a resistor that is required in order for the lights to function properly.
• The primary reason for the Bluetooth integrated into the Touchscreen is for programming purposes, and not for remote control due to the limited range.
• Touchscreen housings are precision machined billet aluminum which contributes to the distance limitations.
• Ranges may vary from 5 feet up to 15 feet depending on the location of the Touchscreen, the surroundings, phone type, phone cover, and many other variables.
