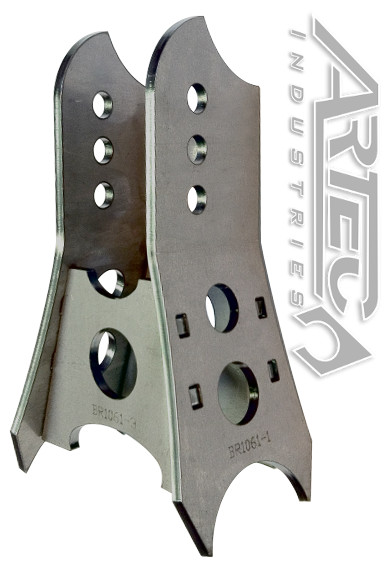

This bracket is intended to both be highly functional and good looking - like most all our brackets. More pleasing to the eye than some of the c-channel looking towers on the market, its design also adds strength to this bracket by offering a larger bracket base.
This bracket is for use with large joints that have a 2.625 inch mounting width. This includes, but is not limited to, 1.25 inch rod ends (heims) with misalignment spacers, and rebuildable cartridge style joints with a 2.5 inch or 2.625 inch width (Johnny, Flex, Ballistic, etc). The hole size is 9/16 inch and can be drilled for larger sizes.
The holes are set at 7, 8, and 9 inches from the axle centerline to allow you to fine tune your suspension. This bracket is made from .250 inch thick steel and comes in four unwelded pieces that jig together for easy assembly. Choose between 3.0 and 3.25 inch axle tube diameters and if your axle tube is a different size, the bracket can be easily modified to fit your axle size with some simple fabrication tools.
This bracket is especially useful if your tire size changes and your suspension needs to be adjusted. Rather than cutting off the old bracket and installing a taller one, simply move you link to the next higher mounting hole.
This bracket is intended for use with a 3-link suspension where only a single straight bracket for your upper control arm is needed. We offer a 10 degree offset version, for those who are needing angled towers.
Features:
- Adjustable Link Tower 3.0 Inch Diameter
- Tube Diameter: 3.0 Inch
- Bolt Hole Size: 9/16 Inch
- Material: Steel
- Sold As: Each
