Direct Fit Flex-a-fit Aluminum Radiator And Electric Fan 87-06 Jeep Wranglers TJ And YJ With LS Engine Conversions Flex-A-Lite

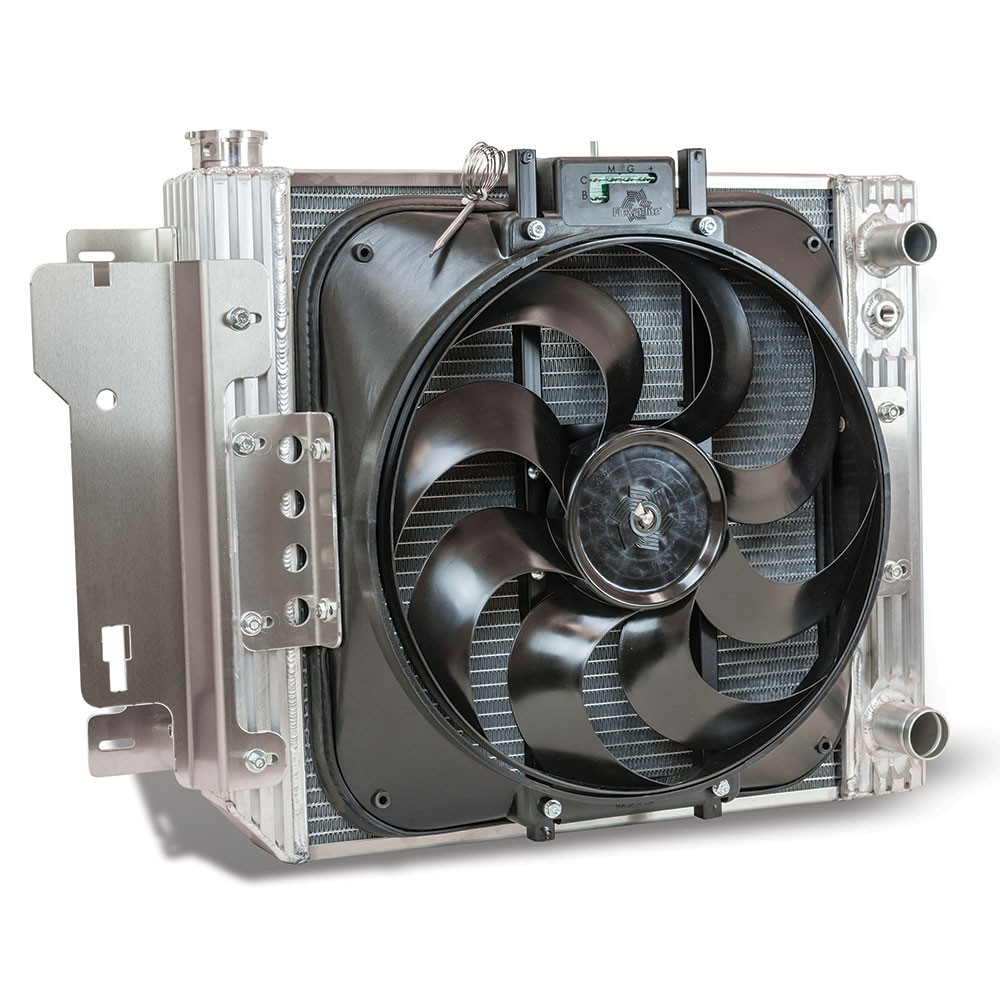

Direct-fit Flex-a-fit aluminum radiator and 15-inch Black Magic S-Blade electric fan with adjustable thermostat controller for 87-06 Jeep Wranglers (TJ and YJ) with LS Engine Conversions. Flex-a-fit aluminum radiators made by Flex-a-lite feature patented sidetank tank technology. The T channels offer better heat transfer, a durable mounting system for the radiator, electric fan and optional oil cooler or expansion tank. The dual 1-inch all-aluminum radiator core is hand welded in the U.S. to the Flex-a-fit sidetanks.
Details:

• Fits 87-06 Jeep Wrangler (TJ and YJ)
• O.E. radiator mounting points
• Brackets are included for no-drill installation
• 2-row, 1-inch tubes
• Height (inches) 18 5/8 in.
• Width (inches) 22 3/8 in.
• Depth (inches) 7 in.
• Depth (rounded up) 7 in.
• Inlet Side Passenger Side
• Air Flow (cfm) 3,000
• Fan Diameter (inches) 15 in.
• Number of Blades 8
• Amperage Draw 19.5
• Fuse Rating (amp) 25
• Engine V8

Note:

• This radiator require a new radiator cap. We recommend Flex-a-lite PN 32101
