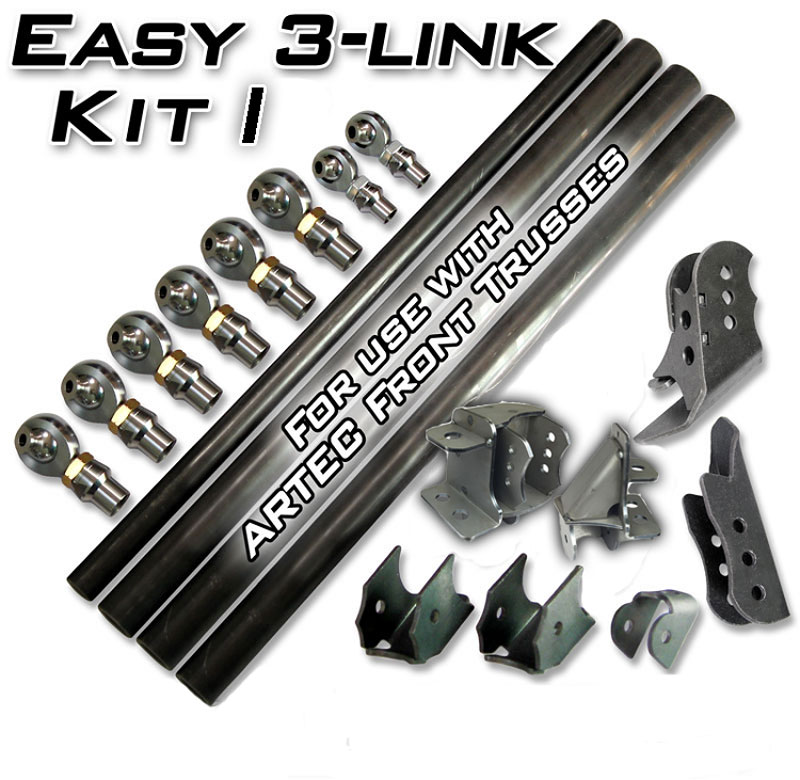

Easy 3 Link Kit I Dual Bracket For Artec Truss Outside Frame Artec Industries

Easy 3 Link - Kit I - Dual Bracket For Artec Truss. Our Easy 3-Link Kit G is the simplest way to get your links done. This Kit is based off our Dual 3 Link Bracket with panhard bar. This Kit is intended For use with our 60 trusses. If you aren't using a truss, please select Kit H. The heat and cryogenically treated chromoly rod ends are the strongest and longest lasting on the market. The included tube adapters feature machined Wrench Flats For Easy adjustments and tightening and conform to the outer diameter of the tubing it welds to. The included stainless steel high misalignment spacers allow For maximum articulation Inch the rod end. As an option, this Kit offers four foot lengths of both 1.5 inch and 2.0 inch tubing to be cut to the exact length needed For your particular vehicle. This Kit will require drilling of lower link holes to 3/4 inch unless you specify you'd like 9/16 inch bolts For your lower links.
Features:

• Sold as Kit
• No Tubing
• Includes:
• 1 RH, 1 LH - 7/8 -14TPI X 3/4 inch bore rod ends For panhard
• 1 RH, 1 LH - 7/8 inch -14TPI Tube Adapters For panhard
• 1 RH, 1 LH - 7/8 inch -14TPI Jam nuts For panhard
• 4 - 3/4-9/16 inch High Misalignment Spacers
• 3 RH, 3 LH - 1.25 inch -12TPI X 1.0 inch bore rod ends
• 3 RH, 3 LH - 1.25 inch -12TPI Tube Adapters
• 3 RH, 3 LH - 1.25 inch -12TPI Jam nuts
• 12 - 1.0-3/4 inch High Misalignment Spacers
• 1 - Pair Lower Link Axle Brackets (10 deg)
• 1 - Single Truss Upper Link Mount(2.63 inch)
• 1 - Bracket Dual 3 Link
• 1 - Adjustable Panhard Frame Mounts- Choose Outside Frame
• 1 - Adjustable Panhard Truss Mount - Choose Chevy/Ford 78-79
• 1 - 4 FT 1.5 inch OD .250 inch Thick DOM Tubing (optional)
• 3 - 4 FT 2.0 inch OD .250 inch Thick DOM Tubing (optional)
