Extruded Core Radiator 99-04 Full Size 1/2-ton GM truck and SUV Flex-A-Lite

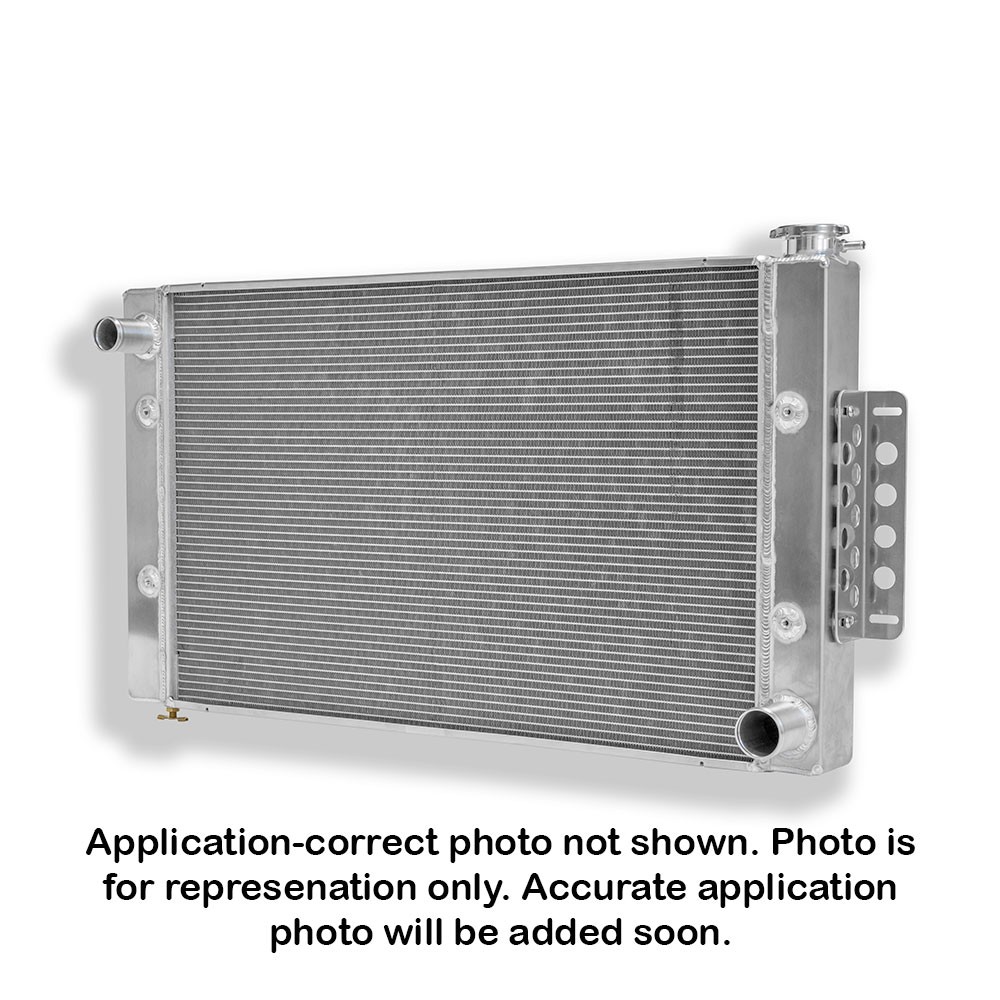

Flex-A-Lite Extruded Core Radiator 1999-2004 Full Size 1/2-ton GM truck and SUV

This direct-fit radiator is engineered to bolt into a 1999-2004 full-size 1/2-ton Chevrolet or GMC truck or SUV. No cutting or drilling is required for installation, and the radiator will mount using the factory location and equipment. Radiator includes 22-24 lbs. cap and train petcock.

Features and Benefits:

• Increases contact area between coolant and the aluminum tubes for better heat rejection and cooling
• Provides a flat surface to braze the cooling fins to, maximizing the contact between the tubes and fins for increased heat rejection and better cooling
• Cooling fins have been designed with louver patterns cut into them to direct airflow, improving heat rejection and cooling
• Wind tunnel testing has shown that this Extruded Tube Core technology is significantly more efficient for cooling than standard tube radiators
• The Flex-A-Lite Extruded Tube Core Radiators are significantly stronger and have a 100-psi burst rating
• Flex-A-Lite Extruded Tube Core Radiators include a corner subhead, reinforcing the cooling tube to header connection; an area prone to cracking and leaking in other brands of aluminum radiators
• Covered by an exclusive Flex-A-Lite transferable 2-year warranty

Details:

• Height (inches) 18.5
• Width (inches) 34.63
• Depth (inches) 2.56
• Depth (rounded up) 3 in.
• Inlet Side Driver Side
• Year 99-04
• Make Chevrolet, GMC
• Model Full Size 1/2-ton GM truck and SUV
• Engine No
• Displacement CID No
• Liters No
• Fitment Notes No
