Extruded Core Radiator and Electric Fan 64-67 Chevelle and other GM A-Bodies Flex-A-Lite

Flex-A-Lite Extruded Core Radiator and Electric Fan 1964-1967 Chevelle and other GM A-Bodies

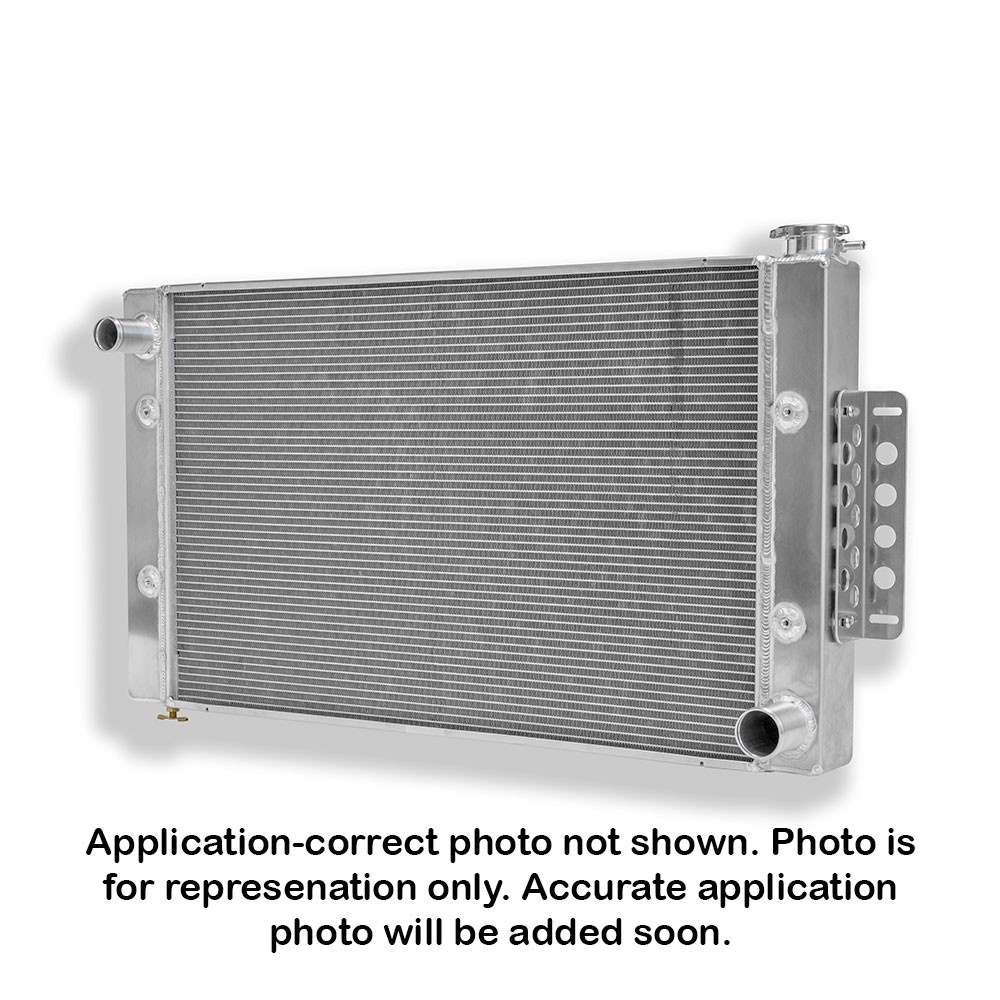

This direct-fit radiator is engineered to bolt into a 1964-1967 Chevelle and other GM A-Bodies. No cutting or drilling is required for installation, and the radiator will mount using the factory location and equipment. Includes a fully-shrouded Black Magic Xtreme S-Blade electric fan mounted. The fan moves 3,300 cfm of airflow and includes an Adjustable Thermostatic Controller, making this a complete unit, ready to install. Radiator includes 22-24 lbs. cap and train petcock.

Features and Benefits:

• Increases contact area between coolant and the aluminum tubes for better heat rejection and cooling
• Provides a flat surface to braze the cooling fins to, maximizing the contact between the tubes and fins for increased heat rejection and better cooling
• Cooling fins have been designed with louver patterns cut into them to direct airflow, improving heat rejection and cooling
• Wind tunnel testing has shown that this Extruded Tube Core technology is significantly more efficient for cooling than standard tube radiators
• The Flex-A-Lite Extruded Tube Core Radiators are significantly stronger and have a 100-psi burst rating
• Flex-A-Lite Extruded Tube Core Radiators include a corner subhead, reinforcing the cooling tube to header connection; an area prone to cracking and leaking in other brands of aluminum radiators
• Covered by an exclusive Flex-A-Lite transferable 2-year warranty

Details:

• Height (inches) 21.35
• Width (inches) 25.68
• Depth (inches) 6.24
• Depth (rounded up) 7 in.
• Inlet Side Driver Side
• Air Flow (cfm) 3,300
• Fan Diameter (inches) 15
• Number of Blades 8
• Amperage Draw 18
• Fuse Rating (amp) 40
• Year 64-67
• Make GM
• Model Chevelle and other GM A-Bodies
• Engine No
• Displacement CID No
• Liters No
• Fitment Notes No
