Extruded Core Radiator and Electric Fan 79-93 Fox Body Mustang LS Engine Flex-A-Lite

Flex-A-Lite Extruded Core Radiator and Electric Fan 1979-1993 Fox Body Mustang LS Engine

Flex-A-Lite Extruded Core Technology is the future of performance aluminum radiators, replacing multi-core radiators with a new advanced design. Flex-A-Lite Extruded Core Radiators provide significantly better cooling with a stronger, more durable and lighter design.

This direct-fit radiator is engineered to bolt into a 1979-1993 Fox Body Mustang with an LS engine swap. No cutting or drilling is required for installation, and the radiator will mount using the factory location and equipment. A fully-shrouded Black Magic Xtreme S-Blade electric fan comes mounted to the radiator. The fan moves 3,300 cfm of airflow and includes an Adjustable Thermostatic Controller, making this a complete unit, ready to install. Radiator includes 22-24 lbs. cap and train petcock.

Features and Benefits:

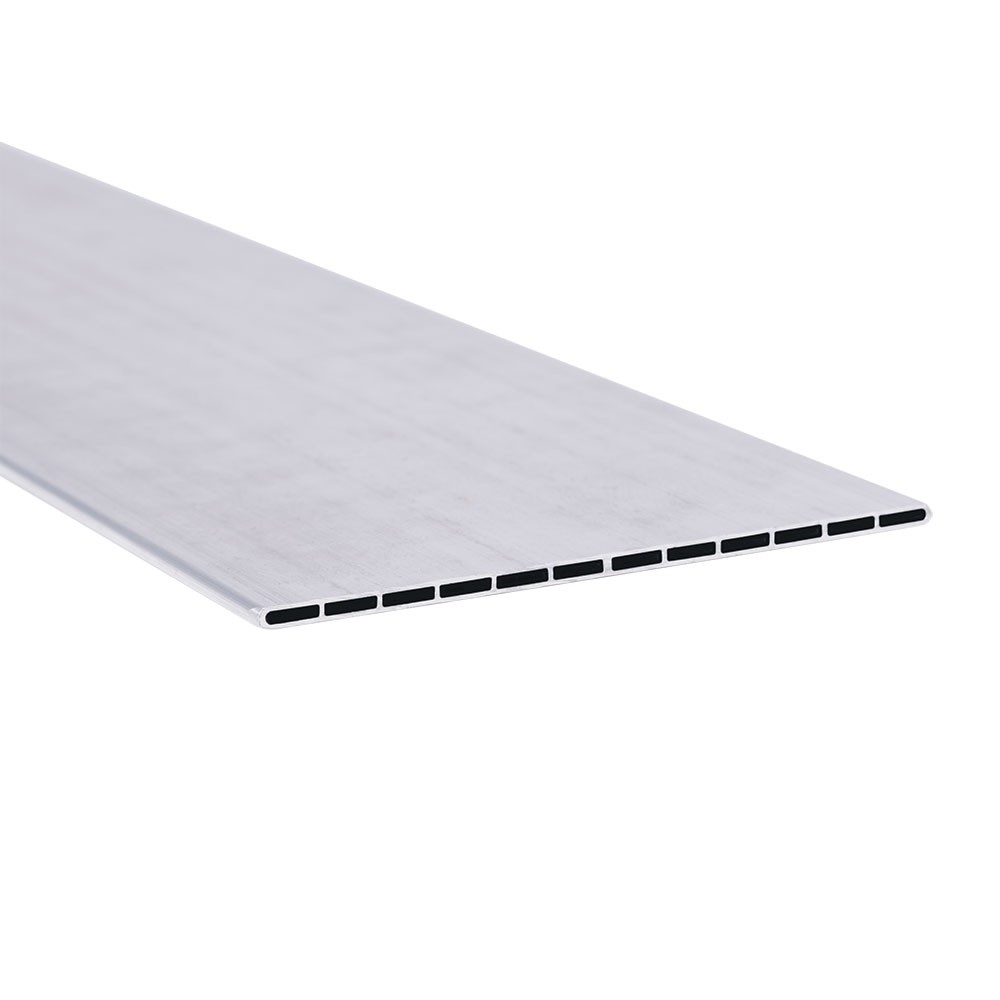

• Increases contact area between coolant and the aluminum tubes for better heat rejection and cooling
• Provides a flat surface to braze the cooling fins to, maximizing the contact between the tubes and fins for increased heat rejection and better cooling
• Cooling fins have been designed with louver patterns cut into them to direct airflow, improving heat rejection and cooling
• Wind tunnel testing has shown that this Extruded Tube Core technology is significantly more efficient for cooling than standard tube radiators
• The Flex-A-Lite Extruded Tube Core Radiators are significantly stronger and have a 100-psi burst rating
• Flex-A-Lite Extruded Tube Core Radiators include a corner subhead, reinforcing the cooling tube to header connection; an area prone to cracking and leaking in other brands of aluminum radiators
• Covered by an exclusive Flex-A-Lite transferable 2-year warranty

Details:

• Height (inches) 18.99
• Width (inches) 28.75
• Depth (inches) 6.24
• Depth (rounded up) 7 in.
• Inlet Side Passenger Side
• Air Flow (cfm) 3,300
• Fan Diameter (inches) 15
• Number of Blades 8
• Amperage Draw 18
• Fuse Rating (amp) 40
• Year 79-93
• Make Ford
• Model Fox Body Mustang
• Engine LS
• Displacement CID No
• Liters No
• Fitment Notes No
