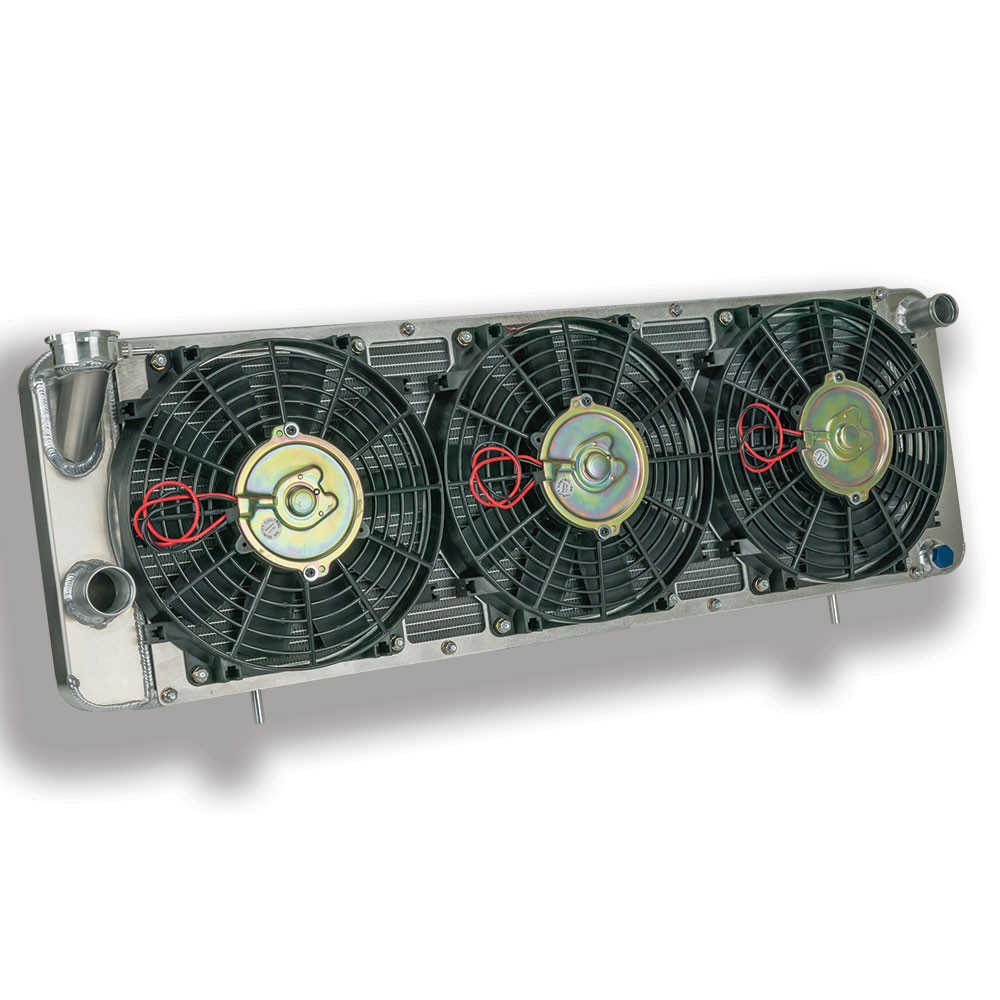

Extruded Core Radiator and Triple Electric Fans 84-01 Jeep Cherokee XJ Flex-A-Lite

Flex-A-Lite Extruded Core Radiator and Triple Electric Fans 1984-2001 Jeep Cherokee XJ

Flex-A-Lite Extruded Core Technology is the future of performance aluminum radiators, replacing multi-core radiators with a new advanced design. Flex-A-Lite Extruded Core Radiators provide significantly better cooling with a stronger, more durable and lighter design.

This direct-fit radiator is engineered to bolt into a 1984-2001 Jeep Cherokee XJ. No cutting or drilling is required for installation, and the radiator will mount using the factory location and equipment. Three electric fans come mounted to the radiator. The fans moves 2,400 cfm of airflow and includes a Variable Speed Controller, making this a complete unit, ready to install. Radiator includes 22-24 lbs. cap and train petcock.

Features and Benefits:

• Increases contact area between coolant and the aluminum tubes for better heat rejection and cooling
• Provides a flat surface to braze the cooling fins to, maximizing the contact between the tubes and fins for increased heat rejection and better cooling
• Cooling fins have been designed with louver patterns cut into them to direct airflow, improving heat rejection and cooling
• Wind tunnel testing has shown that this Extruded Tube Core technology is significantly more efficient for cooling than standard tube radiators
• The Flex-A-Lite Extruded Tube Core Radiators are significantly stronger and have a 100-psi burst rating
• Flex-A-Lite Extruded Tube Core Radiators include a corner subhead, reinforcing the cooling tube to header connection; an area prone to cracking and leaking in other brands of aluminum radiators
• Covered by an exclusive Flex-A-Lite transferable 2-year warranty

Details:

• Height (inches) 11.66
• Width (inches) 36
• Depth (inches) 4.73
• Depth (rounded up) 5 in.
• Inlet Side Passenger Side
• Air Flow (cfm) 2,400
• Fan Diameter (inches) Triple 10
• Number of Blades 10
• Amperage Draw 19.5
• Fuse Rating (amp) 40
• Year 84-01
• Make Jeep
• Model Cherokee XJ
• Engine No
• Displacement CID No
• Liters No
• Fitment Notes No
