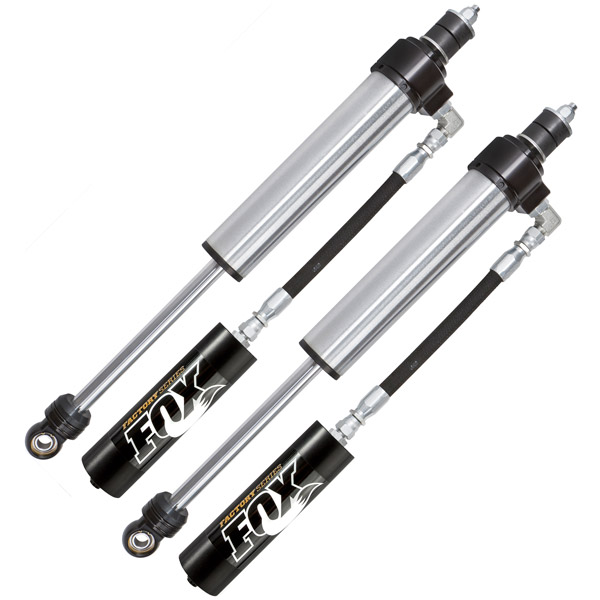

Fox Factory Series 2.5 Inch Internal Bypass Reservoir Shock Set Synergy MFG

The 2.5 Factory Series Internal Bypass shock delivers patented race-dominating position sensitive damping technology and performance in a hassle free Bolt On kit. Patented, position sensitive internal bypass technology contains internal passages that allow fluid to bypass the piston through regulated ports as it moves through the travel. They allow for a plush predictable ride over normal offroad driving conditions and also have the ability to ramp up damping force for extreme use. These heavy-duty, steel-bodied shocks are loaded with anodized billet aluminum components and race-bred internal valving. They are designed to bolt right on with your aftermarket long-arm suspension lift kit. The 2.5 Factory Series Internal Bypass shocks utilizing all of the same components form our race winning Trophy Truck shocks with Stainless Steel steel shock shafts, PTFE-lined spherical bearings, proprietary racing oil and high-temp Viton seals. Large 2.5 inch remote reservoirs with a large -10 hose increasing the shocks cooling capabilities.

Dual Speed Compression (DSC) adjuster gives remarkable versatility and precise tuning. A simple twist of either two adjuster knobs allows twelve separate low-speed and ten high-speed compression levels.
Fits:

• 07-Present Jeep Wrangler JK
• 07-Present Jeep Wrangler Unlimited JK
• Front Shocks For 2.5-4 Inch Lift With DSC Adjuster

Specifications:

• Body - Smooth-bore, clear coated, zinc plated, honed seamless alloy bodies
• Components - Black anodized 6061-T6 billet aluminum
• Shaft - 7/8 inch hard chrome plated Stainless Steel steel 17-4 H900
• Piston - Race-developed high-flow piston design
• Valving - Application specific valving to maximize offroad performance
• Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
• Optional high temperature Viton seals
• Oil - Specially formulated for ultimate performance at variable temperatures
• Reservoir - External
• Mounting - Applications available for stock and aftermarket lifts kits
• Teflon-lined, heat-treated, alloy steel spherical bearings
• Front shocks require the use of our 8073 Jeep JK Lower Shock Mount Bracket
• Sold In Pairs

Adjustments:

• Nitrogen pressure
• Compression valving
• Rebound valving
• Dual Speed Compression (DSC) adjuster (883-06-068/883-06-069) only
