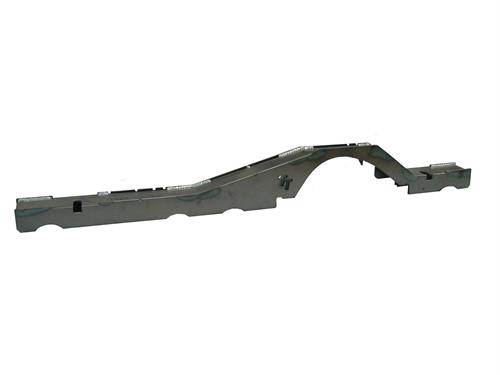

Jeep Front Axle Truss Ford HP Dana 44 Leaf Sprung Style Jeep XJ, TJ, ZJ, MJ TNT Customs

Jeep Front Axle Truss Ford HP Dana 44 Leaf Sprung Style Jeep XJ, TJ, ZJ, MJ TNT Customs. Swap a HP Dana 44 Ford Leaf sprung axle, into your Jeep TJ, LJ UnLimited, Cherokee XJ, ZJ Grand Cherokee or MJ Comanche. The TNT High Pinion Dana 44 Axle Truss makes swapping this axle into your Jeep a breeze, and is an easy way to further strengthen your front housing and end up with beefier axle brackets and components at the same time.

The most interesting part is that our design allows you to install the truss without having to measure your mount locations our optional UCA mounts, coil buckets and trackbar mounts are jig welded to the truss during assembly saving you time.
To locate the axle truss, all you have to do is set caster, then set the truss perpendicular to the ground and burn it home, easy enough just about anyone can do it. We let you choose what mounts you want so that you can order your truss so that it best corresponds to your application. Axle truss fits late 70's Ford Leaf Sprung HP Dana 44 axle housings with ball joints only.
Features:

• Truss constructed of 1/4 Inch steel plate
• DS and PS Upper Control Arm mounts include new bushings
• Slotted Coil Buckets for easy wheelbase adjustment
• Coil mounts include shock and factory trackbar mounting provisions
• Trackbar mounts available for Over-the-knuckle and Crossover/Hysteer applications
• Truss ships pre-assembled.
• Swaybar mounts constructed of 3/8 Inch steel plate
• Manufactured in the USA

Notes:
Due to the the various mounting options available trusses are built to order so please allow 5-7 days before shipping.
Product received may differ from the pictures shown above.
All of our trusses require welding to install. We strongly recommend using a certified welder for any welding tasks.
TNT HD High Clearance Lower Control Arm mounts leave nothing below the axle tube and offer improved suspension geometry: (Adjustable lower control arms are required).
Due to the various combinaton of mounts available trusses are built to order so please allow 5-7 business days before shipping.
Product received may differ from that shown in the above pictures.
OTK or Hysteer Tracbar mounts, Upper control arm mounts and coil mounts come pre-welded when added to the truss, Lower Control Arm mounts and swaybar mounts do not come welded to the truss.
Our HD coil buckets include mounting provisions for retaining the factory trackbar and shock mounts.
Disclaimer regarding Wheelbase Changes: TNT is not responsible for the incompatibility or failure of another manufacturers control arms. TNT recommends checking with your suspension manufacture regarding compatibility of their control arms before performing any wheelbase changes.
