These all-inclusive TeraFlex Sport ST (Street and Trail) Suspensions Systems deliver true street and trail (ST) performance and capability in a dependable and maintenance-free package.
Developed for the Jeep enthusiast looking for a stable highway commute and comfortable trail performance, the 2.5 inch Sport ST2 Spring and Spacer Lift System's front lift coil springs and rear lift coil spring spacers have minimal impact on factory suspension geometry. The foam Progressive bump stops prevent tire contact and shock bottoming.
All Sport ST Suspension Systems feature lift coil springs (and rear lift coil spring spacers - ST2) and bump stops optimized for stated lift height as well as tire and component clearance.
This results in a simple install and drive bolt-on installation with no cutting or welding required. These maintenance-free suspension systems provide superior on-road ride quality and comfort with maximum off-road flex.
TeraFlex suspension systems provide reduced noise, vibration, and harshness (NVH). Sport ST Suspension Systems can be installed on Friday, wheeled on Saturday, and driven to church on Sunday!
Does not include shocks. We recommend Falcon Performance Shocks. Falcon shock absorbers and TeraFlex lift coil springs have been engineered together to improve both compression and rebound for optimal vehicle stability. Sport ST2 Suspension Systems are offered with select Falcon SP2 Mode Adjust Shocks including: 3.3 Fast Adjust, 3.1 Piggyback, 2.1 Monotube, or without shock absorbers. Other Falcon shocks are available separately.
Specs:
- JT Gladiator (pickup)
- Lift Height: 2.5 inch
Max Tire Diameter:
- Sport/Overland Fenders: 35 inch Tires
- Rubicon Fenders: 35 inch Tires

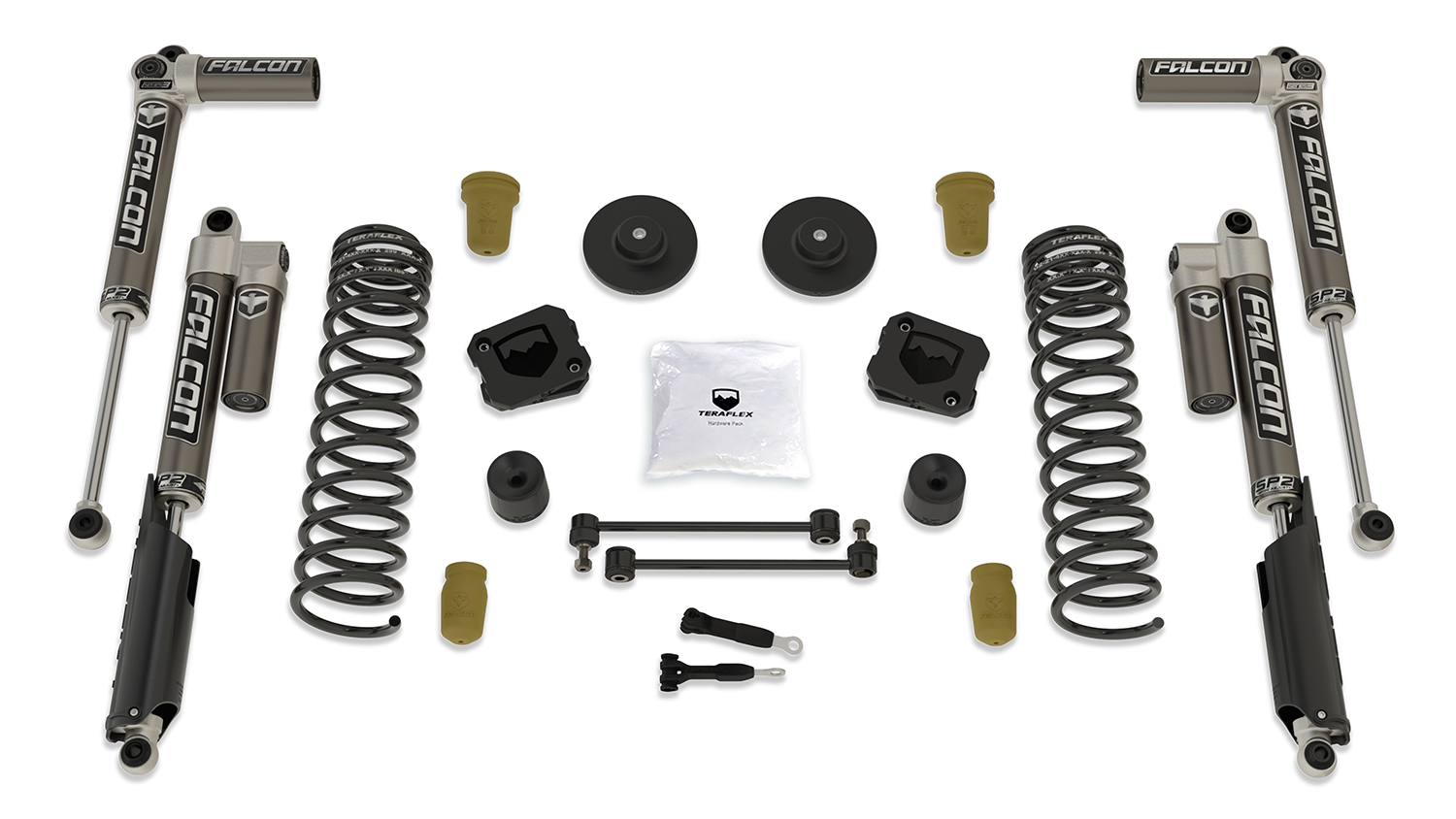

Includes:
- 2.5 inch Lift Coil Spring Kit - Front (part number 1872100)
- 0.5 inch Lift Coil Spring Spacer Kit - Rear
- Progressive Bump Stop Kit - Front and Rear (0-4.5 inch Lift) (part number 1969200)
- 2 inch Bump Stop Strike Pad Extensions - Front Lower - 2
- 0.5 inch Bump Stop Strike Pad Shim Kit - Rear Lower (part number 1969100) x 2
- Front Sway Bar Quick Disconnect Kit (0-4.5 inch Lift) (part number 1764000)
- 13 inch Rear Sway Bar Link Kit
- Front Brake Line Anchor Kit (part number 1101255)
- All necessary hardware
- Falcon SP2 3.1 Piggyback Shock Kit (2-3 inch Lift) (part number 14-02-31-400-150)
- And more
Features and Benefits:
- Sport ST2 Spring and Spacer Lift:
- Sport/Overland Fenders: 35 inch Tires
- Rubicon Fenders: 35 inch Tires
- Allows fitment of larger tires for more ground clearance and more aggressive aesthetics
- Minimal impact on suspension geometry
- Street and Trail:
- Delivers true Street and Trail (ST) performance
- Dependable performance w/ zero worries
- Positive, responsive handling w/ reduced NVH
- Front Track Bar Bracket (3.5 inch and up) improve steering response, center axles to optimize vehicle roll center, and reduce body roll for unsurpassed handling
- Front and rear Progressive Bump Stops protect occupants and the vehicle from hard suspension bottoming
- Full range of movement for off-road flex and articulation
- Install and drive, simple bolt-on installation - no welding required
- TeraFlex Limited Lifetime Warranty against defects
Note(s):
- Caster correction recommended, but not required - not included. Proper suspension geometry ensures all stability controls function w/in factory parameters. The following components are recommended to optimize caster and pinion angles and restore factory steering and suspension geometry: Front Lower Sport Control Arm Kit (part number 1253000), or Front Control Arm Sport Frame Bracket Kit (part number 1938125), or adjustable 8-Arm Short Control Arm Kit (Alpine: part number 1417550 or Alpine IR: part number 1417500), and/or adjustable Alpine IR Front Track Bar (part number 1753420).
- Requires aftermarket wheels w/ 4.75 inch backspacing or less - or Offset Wheel Adapters (part number 1057000) for stock wheels - not included.
- Models w/ plastic bumpers require removal of bumper-to-fender wind deflector/splash guards in order to fit 35 inch or larger tires.
- All OEM fenders require 2 inch front and 1 inch rear bump stop extensions in order to fit 35 inch tires - included.
- Alignment required.
- Requires longer shocks (not included in base kit) - Falcon Performance Shocks recommended.
- Install Time: 5.5 Hours
