Jeep JK 2 Door Alpine CT4 Suspension System 4 Inch Lift w/ Falcon 3.1 Shocks 07-18 Wrangler JK TeraFlex

TeraFlex Alpine CT (Cross-Trail) Suspension Systems begin where our Sport S/T (Street/Trail) Suspension Systems end.

The Alpine CT4 Suspension System is developed for the off-roader craving Baja handling as well as highway control in a no-compromise package. The 4 Inch lift Alpine CT4 builds on the 3 inch lift Alpine CT3 by adding our fully adjustable Alpine long flexarms and long flexarm brackets as well as a heavy-duty adjustable rear track bar for full suspension adjustability both on and off-road.

Our fully adjustable Alpine flexarms have been engineered to allow tuning of the pinion and caster angles, anti-squat geometry, and tire position as well as optimize front and rear roll centers. The heavy-duty adjustable front track bar and rear track bar bracket eliminate side-to-side movement. Alpine flexarms feature dependable and maintenance-free bushings.

All of this adds up to provide full suspension articulation and flex off-road along with superior ride quality and performance on road as well as minimal brake dive and squat under acceleration to better put the power down on any surface. TeraFlex suspension systems provide reduced noise, vibration, and harshness (NVH) compared to other longarm kits.

Falcon shocks and TeraFlex coil springs have been designed to work together to improve both compression and rebound for optimal vehicle stability.
Details:

• JK 2-Door 4 Inch Alpine CT4 Suspension System w/ Falcon 3.1 Shocks
• Baja handling with highway control in a no-compromise package
• Engineered to allow tuning in all aspects of geometry
• Provides full suspension articulation and flex off-road
• Superior ride quality and performance on-road
• Sold As A Kit
• SKU: 1224031

Fits:

• 2007-2018 Jeep JK Wrangler (2-door)

Specs:

• Lift Height: 4 Inches
• Max Tire Diameter: 37 Inches

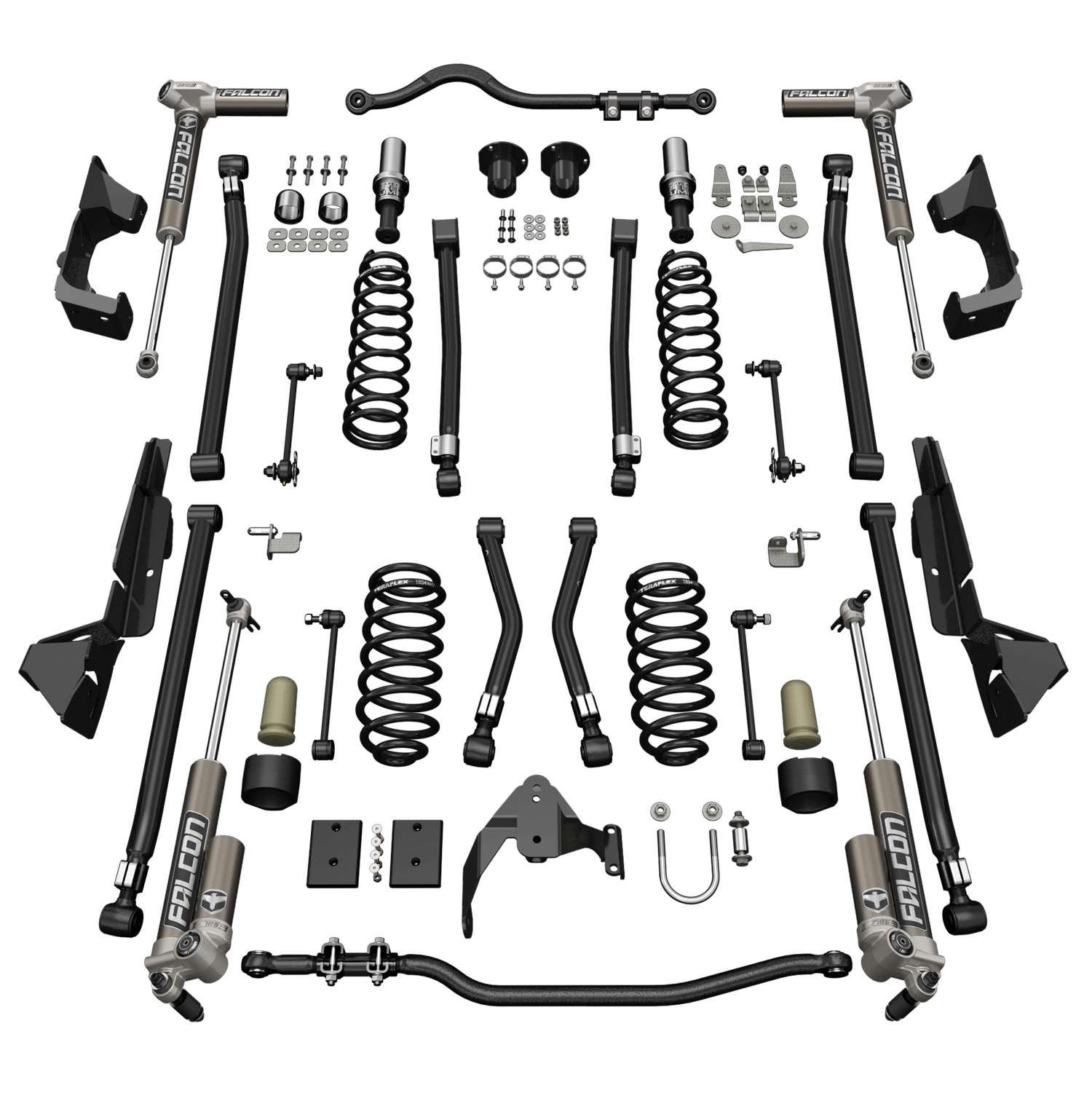

Includes:

• 4 inch lift coil springs
• Fully adjustable Alpine flexarms - Set of 8
• Long flexarm brackets (weld-on)
• HD forged adjustable front and rear track bars
• SpeedBump bump stops
• Front and rear brake lines
• Front brake line anchor kit
• Front sway bar disconnects
• Rear sway bar links
• Exhaust spacers
• Falcon Series 3.1 Piggyback Shocks - set of 4
• All necessary hardware
• And more

Features and Benefits:

• Dependable performance w/ zero worries
• Positive, responsive handling w/ reduced noise, vibration, and harshness (NVH)
• Preset Sport flexarms optimize correct caster and pinion angles for 3-6 inch lift kits
• High-quality, maintenance-free factory-style bushings provide excellent vibration damping and ride quality
• HD forged adjustable front and rear track bars
• SpeedBump progressive speed bumps
• Full range of movement for off-road flex and articulation
• TeraFlex Lifetime Warranty

Notes:

• This is a very heavy item and must be shipped by freight truck
• Requires aftermarket wheels w/ 4.5 inch backspacing or less - or Offset Wheel Adapters (P/N 1055000) for stock wheels
• Driveshaft modifications may be necessary with this suspension system. See the TeraFlex Rzeppa High Angle CV Kit (P/N 1744014)
• 2007-2011 JK/JKU models will require Extended Length Front Brake Lines (P/N 4353300)
• Requires cutting and welding
• Alignment required
• Install Time: 20 Hours
