TeraFlex Alpine CT (Cross-Trail) Suspension Systems begin where our Sport S/T (Street/Trail) Suspension Systems end.
The granddaddy of all our kits, the TeraFlex Alpine CT6 Suspension System is engineered to excel whether driving on road or on the trail, through the desert, or rock crawling! The 6 Inch Lift Alpine CT6 builds on the 4 inch lift Alpine CT4 by adding a heavy-duty drag link flip kit and heavy-duty frame brace kit to correct steering geometry, eliminate front end shimmy, and reinforce the frame.
Our fully adjustable Alpine flexarms have been engineered to allow tuning of the pinion and caster angles, anti-squat geometry, and tire position as well as optimize front and rear roll centers. The heavy-duty adjustable front track bar and rear track bar bracket eliminate side-to-side movement. Alpine flexarms feature dependable and maintenance-free bushings. The gusseted and reinforced bracketry reduces noise, vibration, and harshness (NVH) compared to other longarm kits.
All of this adds up to provide full suspension articulation and flex off-road along with superior ride quality and performance on road as well as minimal brake dive and squat under acceleration to better put the power down on any surface.
Falcon shocks and TeraFlex coil springs have been designed to work together to improve both compression and rebound for optimal vehicle stability.
Details:
- JK 2-Door 6 Inch Alpine CT6 Suspension System w/ Falcon 3.2 Shocks
- Baja handling with highway control in a no-compromise package
- Engineered to allow tuning in all aspects of geometry
- Provides full suspension articulation and flex off-road
- Superior ride quality and performance on-road
- Sold As A Kit
- SKU: 1226032
Fits:
- 2007-2018 Jeep JK Wrangler (2-door)
Specs:
- Lift Height: 6 Inches
- Max Tire Diameter: 38 Inches

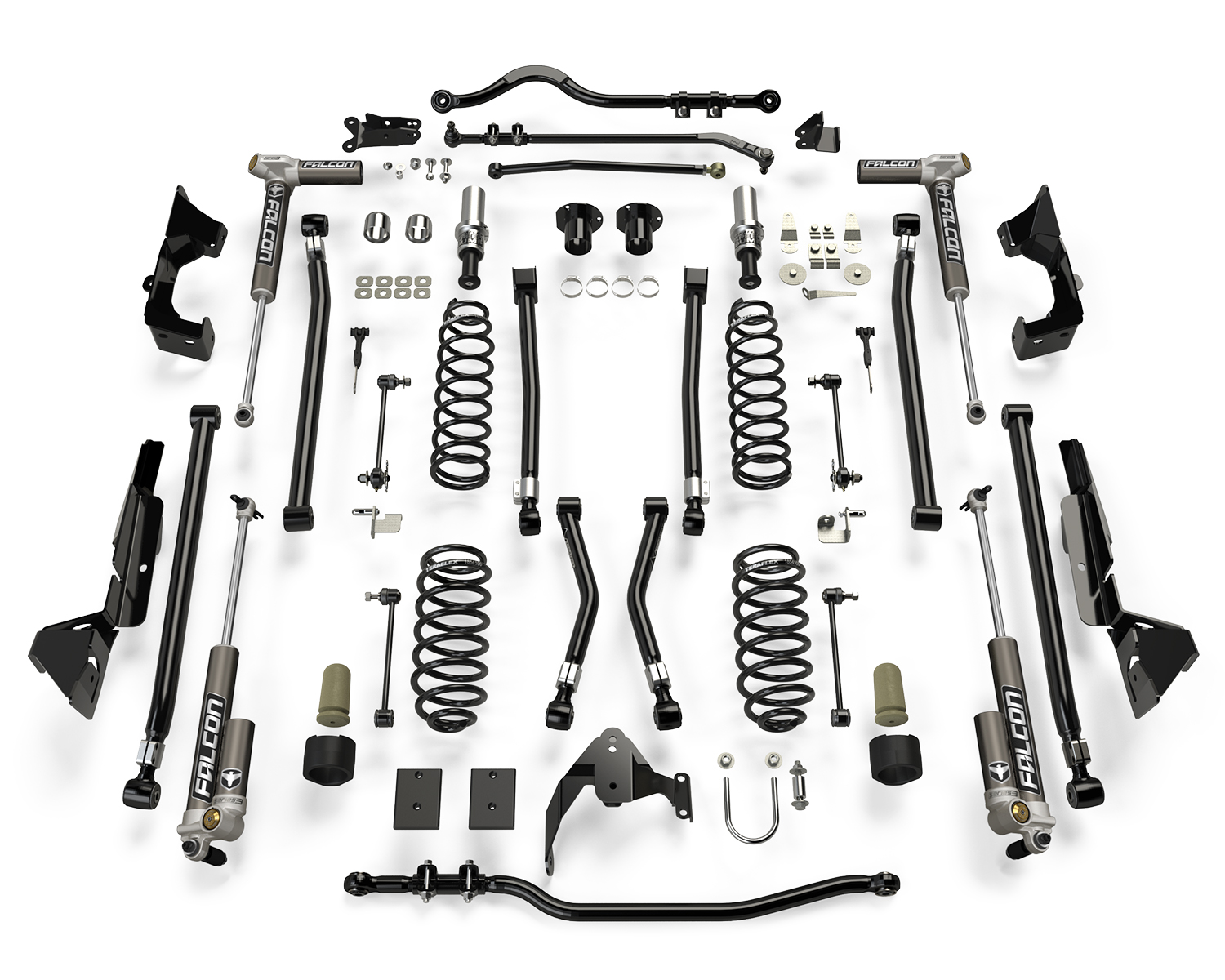

Includes:
- 6 inch lift coil springs
- Fully adjustable Alpine long flexarms - Set of 8
- Long flexarm brackets (weld-on)
- HD forged adjustable front and rear track bars
- HD drag link flip kit and HD frame brace kit
- SpeedBump bump stops
- Front and rear brake lines
- Front brake line anchor kit
- Front sway bar disconnects
- Rear sway bar links
- Exhaust spacers
- Falcon Series 3.2 Adjustable Piggyback Shocks - set of 4
- All necessary hardware
- And more
Features and Benefits:
- Dependable performance w/ zero worries
- Positive, responsive handling w/ reduced noise, vibration, and harshness (NVH)
- Fully adjustable Alpine long flexarms optimizes correct caster and pinion angles for 3-6 inch lift kits
- High-quality, maintenance-free factory-style bushings provide excellent vibration damping and ride quality
- HD forged adjustable front and rear track bars
- SpeedBump progressive speed bumps
- Full range of movement for off-road flex and articulation
- TeraFlex Lifetime Warranty
Notes:
- This is a very heavy item and must be shipped by freight truck
- Requires aftermarket wheels w/ 4.5 inch backspacing or less - or Offset Wheel Adapters (P/N 1055000) for stock wheels
- Requires driveshaft modifications
- Requires cutting and welding
- Alignment required
- Install Time: 24 Hours
