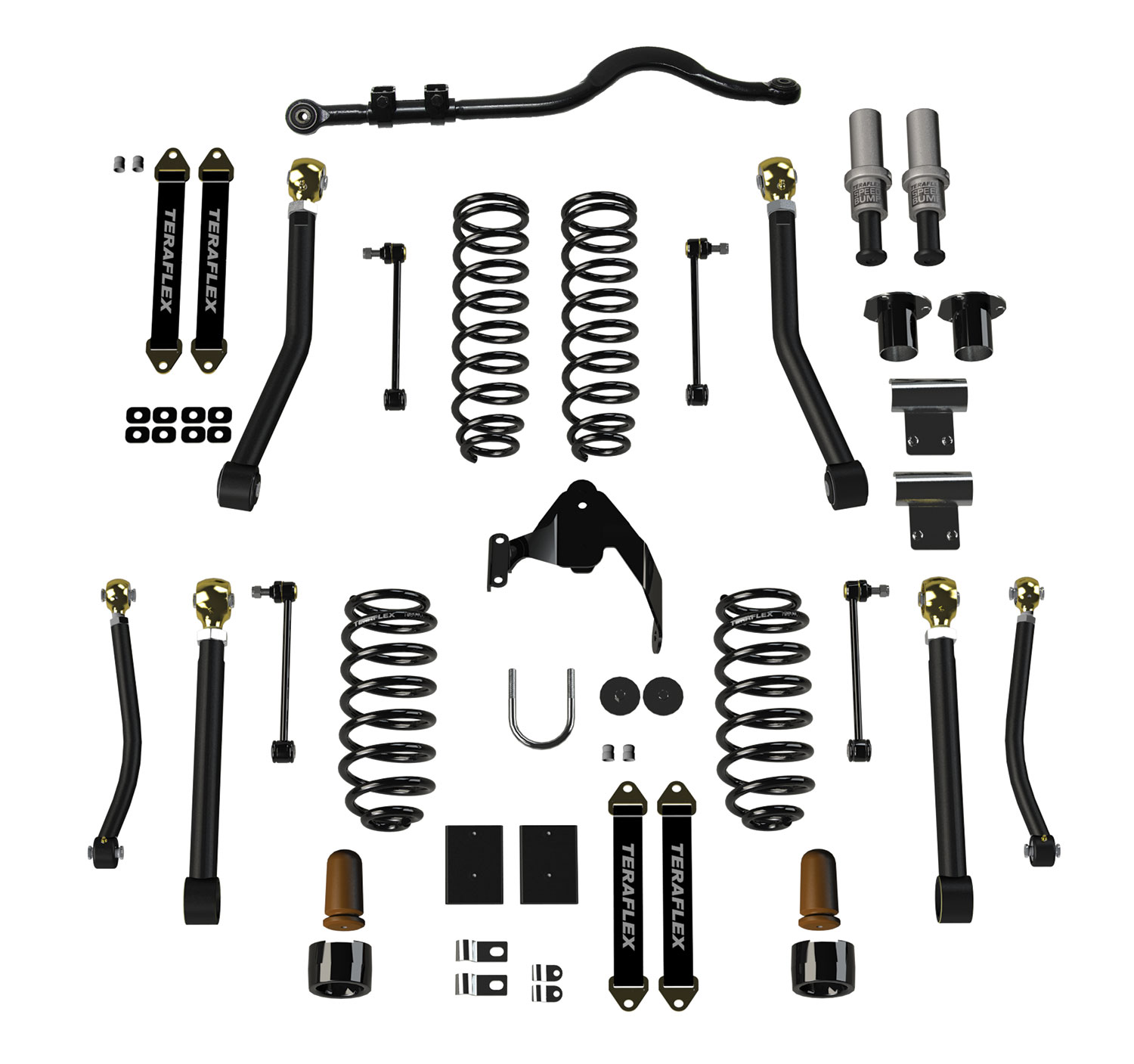

Jeep JK 4 Door Outback Suspension System Right Hand Drive 07-18 Wrangler JK Unlimited TeraFlex

The TeraFlex JK Outback 3 Inch suspension system is designed as a complete suspension system exclusively for expedition style overland travel. This kit was designed from the ground up for a dedicated vehicle capable of supporting sustained self-reliant travel over extreme terrain. Legendary tracks such as the Canning Stock Route in Australia, or the Silk Road in China prove to be some of the toughest challenges a vehicle will ever face. This approach required TeraFlex to evaluate every component and verify the performance factor for each item. It was found that the majority of our products are by virtue of their original design perfectly suited for dedicated overland applications. Some components were modified to make them more suited for long stretches of washboard roads with no maintenance required. Some of these changes are found in the FlexArm joints - opting to use factory style rubber bushings at both ends of the flexarm. This delivers maximum vibration damping. The allowable flex provided by rubber bushings provides full articulation, utilizing maximum shock travel available. Special consideration and attention was spent on correct spring rate tuning and development. Dedicated overland travel requires the use of specific spring rates suited to heavy loads and continuous mechanical resonance that react differently than standard coil spring rates. This system incorporates custom load-enhanced heavy-duty spring rate coils to meet the performance demands of a fully loaded Jeep and maintain the lift height. Suspension limiting straps prevent any potential damage to drivetrain or suspension by maximizing down travel safely. Additional details are addressed such as critical gusseting, bracing and other bracketry to beef up areas that are prone to damage and fatigue typically experienced with extended overland trips. When combined with Fox long travel shocks, superior performance is achieved. This system includes 3 inch lift load-enhanced coil springs, 8 adjustable Alpine flexarms, front swaybar disconnects, rear swaybar links, rear trackbar bracket, SpeedBump bumpstops, front limit straps, and all necessary hardware. This kit will allow you to run up to a 35 inch tire. Aftermarket wheels with 4.5 inches backspacing or less are required.
Fits:

• 07-Present Jeep Wrangler Unlimited JK And Rubicon Unlimited

Details:

• JK 4 Door 3 Inch Outback Suspension System - Right Hand Drive
• Right Hand Drive Only
• Designed Specifically For Heavy Loaded Jeeps
• Allows To Run 35 Inch Tire
• Black Powdercoat Finish
• Shocks Not Included

Note:

• Driveshaft modifications are recommended with this suspension system. 2012+ JKs require exhaust spacers P/N 2610000 or other exhaust modification for proper driveshaft clearance. Because of the load enhanced spring rate, this kit is designed specifically for heavy loaded Jeeps. A firmer ride will be experienced with an empty payload.
