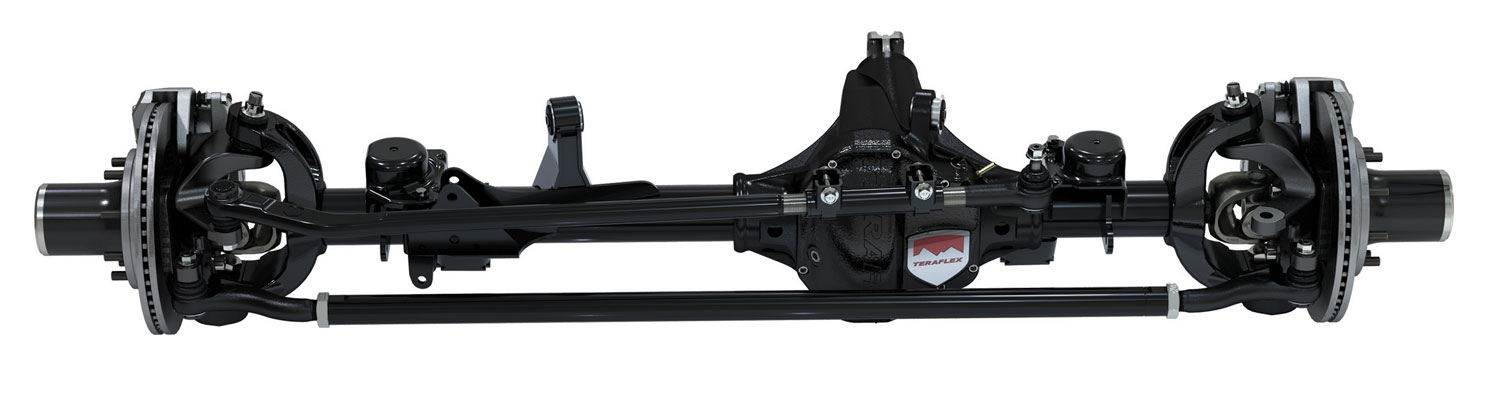

Jeep JK Front Tera60 Full-Float w/ Locking Hubs and 8x6.5 Inch Pattern No R and P Carrier Or Bearings 07-18 Wrangler JK TeraFlex

The heavy-duty TeraFlex JK Front Tera60 Axle Housing is the ultimate upgrade for the JK Wrangler requiring maximum up travel and suspension compression. By integrating the driver side upper control arm mount into the housing assembly, we have gained an additional 2 inches of up travel compared to other aftermarket Dana 60 Series replacement axle housings.

Full-float axle hubs with sealed locking hub assemblies and 8x6.5 inch wheel bolt pattern to tackle the most extreme conditions.

The Tera60 is equipped with the same features included in all of our axles including a heavy-duty housing with heavy-duty axle tubes and bearing caps, forged inner knuckles, high-flow oil passages, bracketry, smooth profile surfaces, and increased cover mounting area. Pre-installed inner seals and upper control arm bushings make the upgrade seamless.

The TeraFlex JK Tera60 Axle Housing is a direct bolt-on upgrade for JK Wrangler owner looking to beef up or replace a bent broken, or damaged stock front axle in JK Wrangler and Rubicon vehicles. Compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring and pinion strength.
Details:

• SKU: 3670000
• Lift Height: 0-6 Inches
• Width: 67 Inches WMS-WMS (Stock)
• Axle Tube: 3.25 inches x 0.375 inch
• Wheel Bolt Pattern: 8 x 6.5 Inch (Custom)

Fits:

• JK Wrangler (2-door) - front
• JKU Wrangler Unlimited (4-door) - front

Includes:

• TeraFlex HD ball joints
• 1350 series pinion yoke
• 35-spline inner and outer axle shafts
• Big Brake Kit w/ 13.3 inch rotors
• JK Premium HD Complete Steering with Flipped Drag Link Kit
• Sold As An Assembly

Features and Benefits:

• Sealed unit bearing assembly for long-term maintenance-free dependability
• 3.25 Inch O.D. x 0.375 inch wall DOM axle tube for superior strength vs weight
• Front Tera60 specific high-pinion axle housing design
• Pre-installed axle seals
• HD forged inner knuckles w/ greater upper and lower section strength
• Ductile cast iron housing w/ increased rib gussets
• HD ductile iron differential cover
• Asymmetric housing design, for extra-long tube side strength
• Smooth radius bottom design to glide over rocks and obstacles
• Integrated lower flexarm skid plates
• Premium UV protected triple-stage powdercoat for superior corrosion resistance
• 1/4 inch thick CNC laser cut axle brackets for extreme strength
• Integrated factory location upper control arm mount
• Pre-installed upper control arm bushings
• Reinforced front track bar mount (ties into spring pad) for greater strength
• Proper pinion angle for lifted JK applications
• Pre-tapped hole on spring perch for bump stop extensions
• Pre-drilled holes for limit straps and lower spring retainers
• Retains all JK ESP, ABS, and Speedometer sensor capability
• 100 percent engineered, designed, and built in the USA
• 100 percent new components
• 1-Year / Unlimited Mileage Warranty

Notes:

• Install Time: 5.5 Hours
• Requires driveshaft modification
• This is a very heavy item and must be shipped by freight truck
