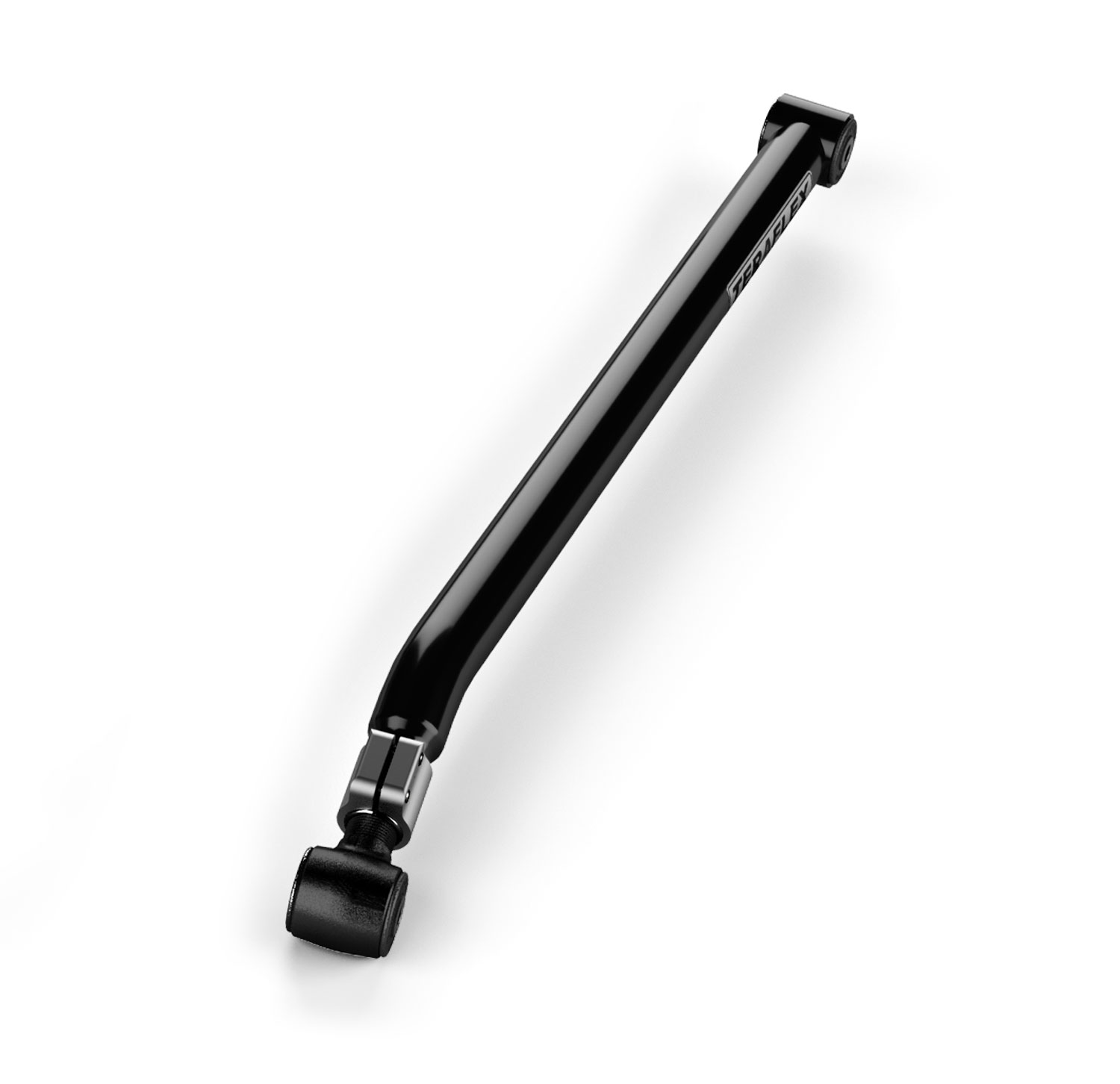

Jeep JK/JKU Adjustable Rear Lower Alpine Long Flexarm 3-6 Inch Lift Passenger Single 07-18 Wrangler JK/JKU TeraFlex

TeraFlex JK/JKU Alpine Long Flexarm adjustable control arms and Alpine Long Flexarm Brackets (not included - P/N 1957000) provides maintenance-free performance with complete alignment adjustability for JK Wrangler and JKU Wrangler Unlimited models with 3-6 inch lifts.

Fully-adjustable Alpine Long Flexarm adjustable control arms optimize correct caster and pinion angles for a proper alignment as well as re-center the axles in the wheel well to maintain the factory wheelbase for proper suspension movement. Can be added to an existing suspension lift.
Fits:

• JK Wrangler (2-door)
• JKU Wrangler Unlimited (4-door)
• Lift Height: 3-6 inches

Flexarm Specs:

• Tube Diameter and Wall: 2 inch x 0.197 inch (50mm x 5mm)
• Factory Length: 19.75 inches
• Min. Length: 35.75 inches
• Max. Length: 37.25 inches
• Both Ends: 9/16 inch (14mm) Bolt
• Thread: 1.25 inch-12 UNF
• Both Bushings

Includes:

• Alpine Long Flexarm - passenger side rear lower adjustable control arm
• Sold individually

Features and Benefits:

• Durable 1.625 inch x 0.157 inch (42mm x 4mm) wall DOM (Drawn Over Mandrel) tube provides maximum strength (upper long control arms)
• Durable 2 inch x 0.197 inch (50mm x 5mm) wall DOM tube provides maximum strength (lower long control arms)
• Fully-adjustable Alpine Long Flexarm control arms optimize pinion and caster angles, and tune anti-squat geometry for proper suspension alignment
• Re-centers axles in the wheel well for proper suspension movement or can be used to increase wheelbase
• Full-range of movement will not restrict articulation or flex off-road
• High-quality factory style bushings provide excellent noise, vibration, and harshness (NVH) damping and ride quality characteristics w/ zero maintenance
• Zero maintenance forged threaded joints for smooth quiet flex
• Premium black e-dipped coating provides superior durability and corrosion resistance on tube and forged rod end housing
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• TeraFlex Lifetime Warranty against defects

Notes:

• Cutting and welding required
• Removal of factory control arm bracketry is required
• TeraFlex Alpine Long Flexarm adjustable control arms must be used in conjunction w/ TeraFlex Alpine Long Flexarm Bracket Kit (not included - P/N 1957000)
• Alpine Long Flexarm Kit - Rear Lower Adjustable Control Arms (P/N 1315500) available as a set
• Alpine Long Flexarm - Driver Side Rear Lower Adjustable Control Arm (P/N 1131541) available separately
• Replacement Bushing for both ends (P/N 611011) available separately
• Install Time: 1.5 Hours
• SKU: 1131551
