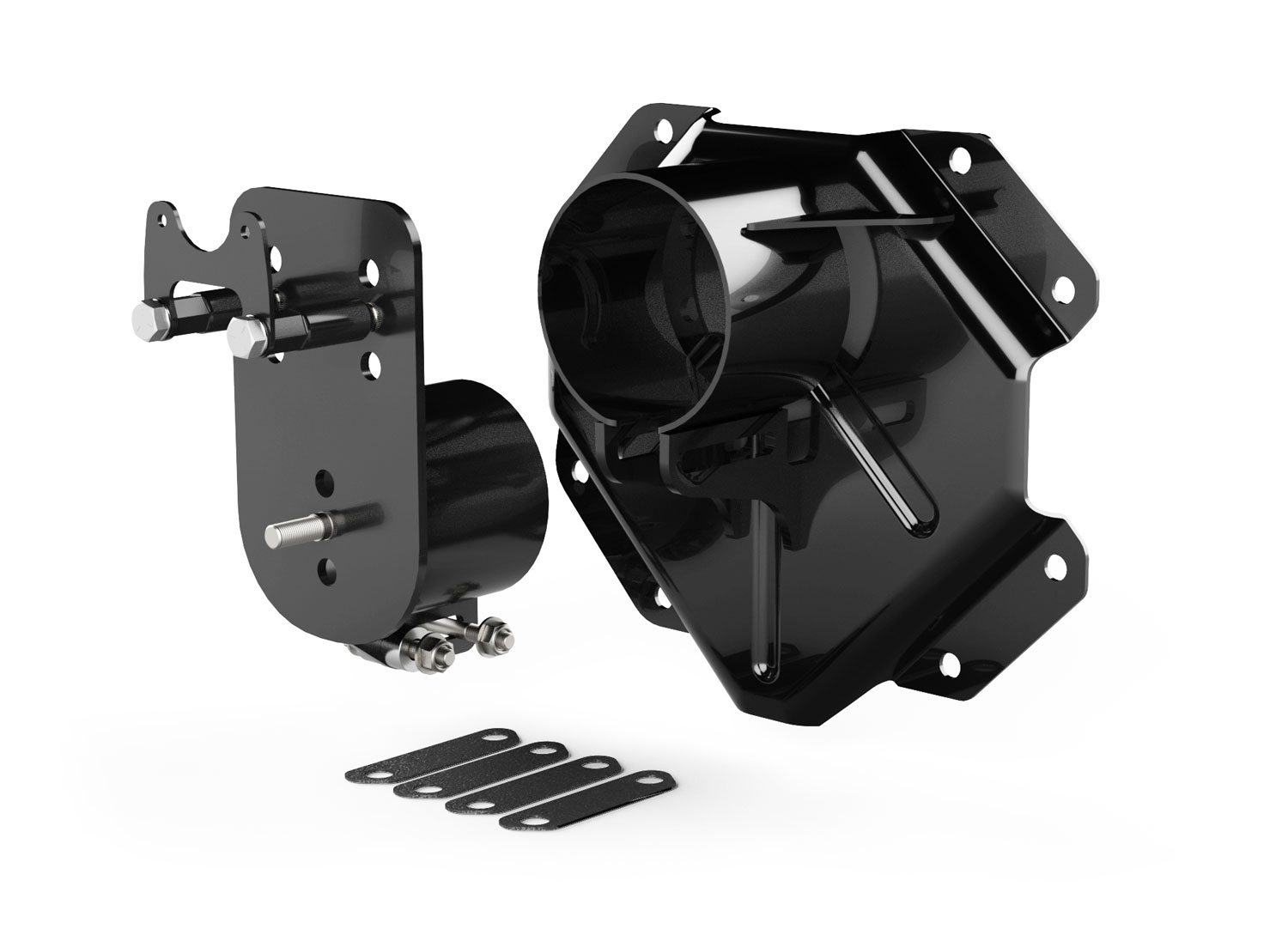

Jeep JK/JKU Alpha HD Adjustable Spare Tire Mounting Kit 5x5 Inch 07-18 Wrangler JK/JKU TeraFlex

Designed to accommodate up to a 35 inch tire (up to a 37 inch tire when used with the Alpha Heavy-Duty Hinged Spare Tire Carrier), the TeraFlex JK/JKU Alpha Heavy-Duty Adjustable Spare Tire Mounting Kit will secure your spare tire over the most extreme trails and rugged terrain.

The Alpha Heavy-Duty Hinged Spare Tire Carrier offers easy access to the rear cargo area in one smooth action. Using the factory tailgate hinge mounting points spreads the load of the spare tire over a larger area for maximum strength and durability.

The TeraFlex Alpha Heavy-Duty Adjustable Spare Tire Mounting Kit will support the additional weight of a full-size spare tire by securely mounting the tire to the Alpha Heavy-Duty Hinged Spare Tire Carrier and tailgate.

Complete adjustability includes vertical as well as fore and aft adjustments. The heavily gusseted tire mount is formed and welded from CNC laser cut steel for superior strength. Although the Alpha Mounting Kit can be used alone, it has been designed to be installed in conjunction with the Alpha Heavy-Duty Hinged Spare Tire Carrier.
Details:

• JK/JKU Alpha HD Adjustable Spare Tire Mounting Kit - 5 on 5 Inch
• Innovative and unique patented design (USPTO: P/N D6982240)
• Maintains single one-handed entry to the rear cargo area
• Eliminates tailgate stress and rattles
• No aftermarket bumper purchase required - works w/ OEM and most aftermarket bumpers
• Strong and lightweight A356.2 T6 cast aluminum and CNC laser cut steel
• Simplicity and ease of installation - can be performed using common hand tools
• No drilling required
• 14,000-cycle severe duty slam testing
• 1,000-hour extreme salt spray testing
• OEM Quality UV resistant powdercoat finish
• Sold As A Kit
• SKU: 4838130

Fits Vehicles:

• 2007-2018 Jeep JK Wrangler (2-door)
• 2007-2018 Jeep JKU Wrangler Unlimited (4-door)

Specs:

• Max Tire Diameter: 35 Inches when used alone or 37 inches when used with the Alpha HD Hinged Spare Tire Carrier (P/N 4838100)
• Wheel Pattern: 5 on 5 Inches

Includes:

• Alpha HD Adjustable Spare Tire Mounting Kit - 5 x 5 inch wheel pattern

Note:

• Requires aftermarket wheels w/ 5 inch backspacing or less - or Alpha HD Hinged Spare Tire Carrier Wheel Spacer Kit (P/N 1055005) for stock wheels.
• Install Time: 1 Hour
