Jeep JK/JKU High-Performance Tera30/44 Front Axle Tube Seal w/ 1/2 Inch Wall Tube 07-18 Wrangler JK/JKU TeraFlex

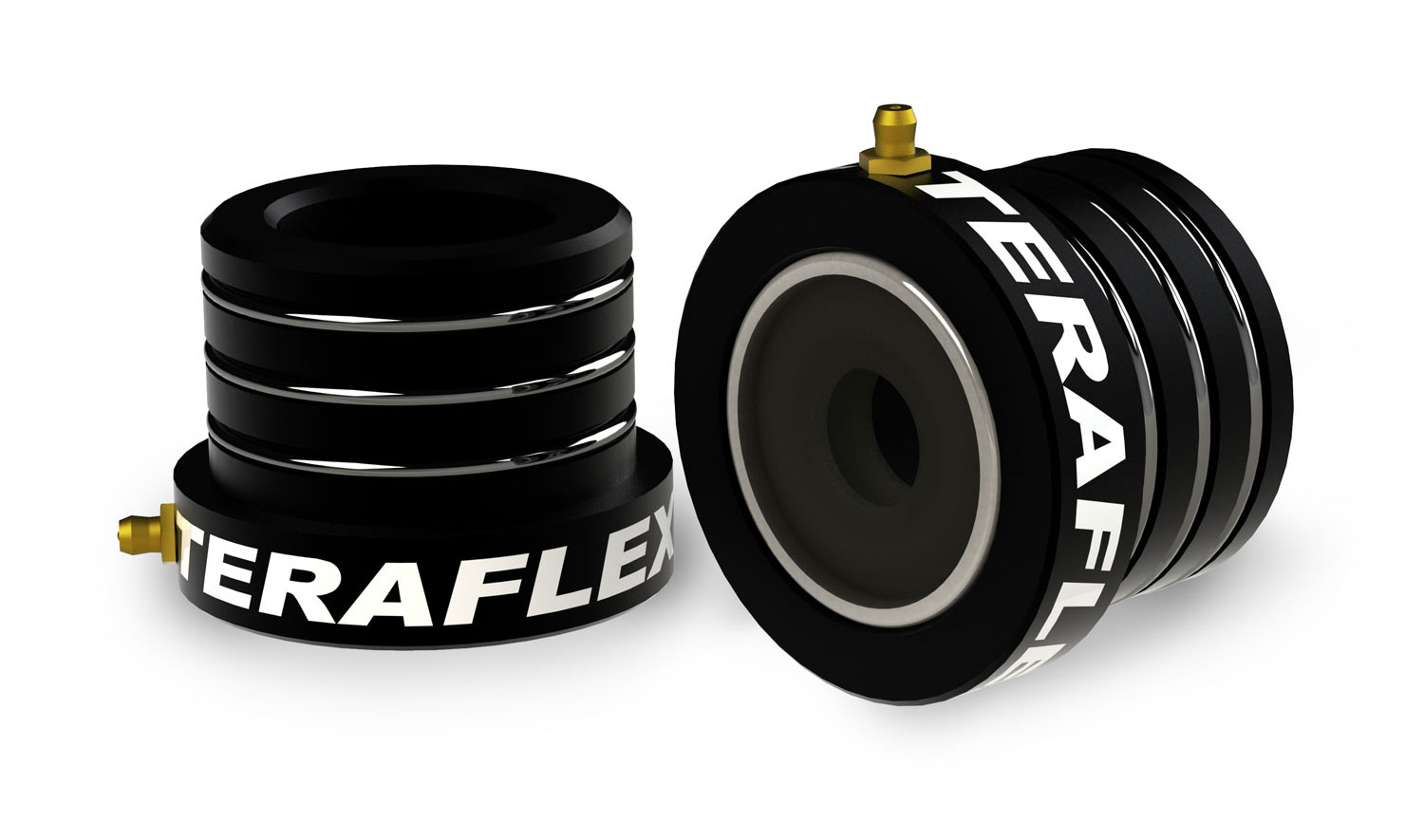

The TeraFlex JK/JKU High Performance Tera30/44 Front Axle Tube Seal fits the oversized 3.25 inch O.D. axle tubes found on Tera30 and Tera44 TeraFlex JK/JKU replacement housing.

The press-in outer triple O-ring tube seal provides a barrier to keep the housing clear of contaminants such as mud and water. The inner double axle seal surface features a cavity between the seal surfaces to form a grease filled pocket that provides lubrication for the seals as well as an additional barrier for mud and grime. These are the same seals developed, proven, and currently used in many NASCAR applications.

The axle tube seal is compatible with all available Rubicon and non-Rubicon axle shafts, including 27-spline Dana 30 up to aftermarket 1.5 inch 35-spline Dana 44 shafts. The billet 6061-T6 aluminum seal housing is laser etched with graphics and black hard anodized for superior corrosion resistance.
Details:

• SKU: 4354050
• Triple o-ring tube seal
• For 3.25 inch axle tubes
• 6061-T6 Construction
• Black Hard Anodized Finish
• Sold As A Pair

Fits:

• Tera30 and Tera44 axle tubes w/ 1/2 inch wall

Install Time:

• 2 Hours
