Jeep JL Long Control Arm Alpine IR and Bracket Kit 8-Arm Adjustable 3-6 Inch Lift For 10-Pres Wrangler JL 2 Door TeraFlex

TeraFlex JL 2 Door Alpine IR Long Control Arms and Alpine Long Arm Brackets provide complete alignment adjustability for maximum performance on JL Wrangler/Unlimited models with 3-6 inch lifts. Includes our innovative IR (Independent Rotation) Bushings.

On higher lifts, Alpine IR Long Control Arms and Brackets reposition the frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during droop and shock load transferred through the control arms. Can be added to an existing suspension lift.

These CAD-designed TeraFlex JL 2 Door Alpine Long Arm Brackets are engineered for maximum strength. By streamlining the frame-end mounting points, we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance.
Fits:

• JL Wrangler (2 Door)
• 3-6 inch Lift

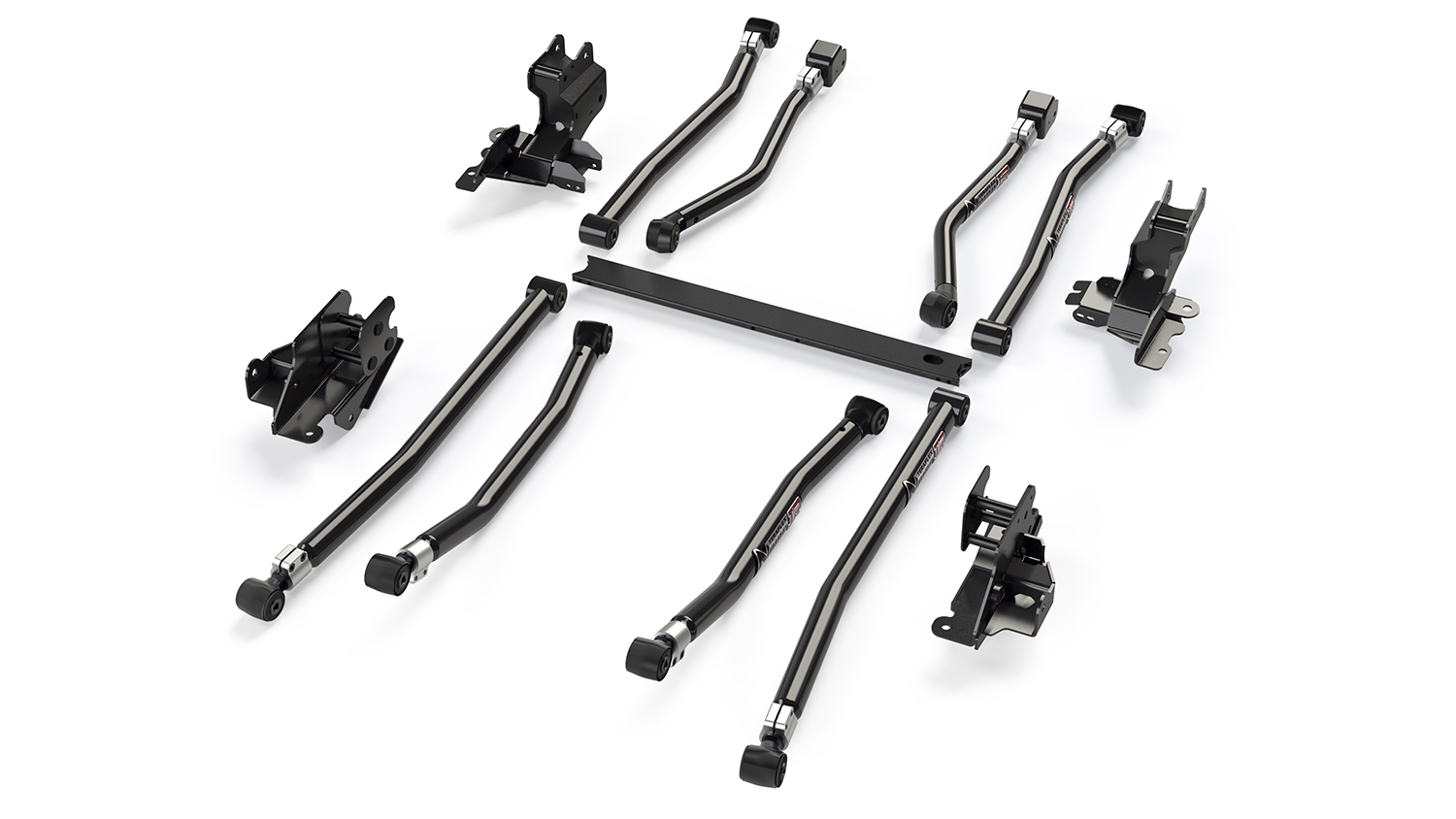

Includes:

• Alpine IR Long Control Arm Kit - 8-Arm Adjustable (part number 1310505):
• Front Upper (part number 1310520) - pair
• Front Lower (part number 1310500) - pair
• Rear Upper (part number 1310560) - pair
• Rear Lower (part number 1310540) - pair
• Alpine Long Arm Bracket Kit (part number 1958002):
• Front Brackets - pair
• Rear Brackets - pair
• Cross Member
• All necessary hardware

Features and Benefits:

• Durable 42mm x 4mm wall DOM (Drawn Over Mandrel) tube provides maximum strength for upper Alpine IR Long Control Arms
• Durable 50mm x 5mm wall DOM tube provides maximum strength for lower Alpine IR Long Control Arms
• Adjustable Alpine IR Long Control Arms optimize caster angle and tune anti-squat geometry for proper suspension alignment
• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
• Full range of movement will not restrict articulation or flex off-road
• Innovative, maintenance-free, IR (Independent Rotation) Bushings provide unrestricted rotation and flex as well as excellent NVH damping and ride quality characteristics
• Zero maintenance forged threaded joints for smooth quiet flex
• Premium black e-dipped coating provides superior durability and corrosion resistance on tube and forged rod end housing and Brackets
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• Alpine Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation, which reduces bushing stress during droop and shock load transferred through control arms
• TeraFlex Lifetime Warranty against defects

Control Arm Specs:

• JL Alpine IR Long Control Arm Kit - Front Upper Adjustable - (part number 1310520):
  • Tube Diameter and Wall = 42mm x 4mm
  • Factory Length = 20.185 inch
  • Min. Length = 27-3/8 inch
  • Max. Length = 28-7/8 inch
  • Axle End = 7/16 inch (12mm) Bolt
  • Frame End = 9/16 inch (14mm) Bolt
• JL Alpine IR Long Control Arm Kit - Front Lower Adjustable - (part number 1310500):
  • Tube Diameter and Wall = 50mm x 5mm
  • Factory Length = 24 inch
  • Min. Length = 33-3/4 inch
  • Max. Length = 35-1/4 inch
  • Both Ends = 9/16 inch (14mm) Bolt
• JL Alpine IR Long Control Arm Kit - Rear Upper Adjustable - (part number 1310560):
  • Tube Diameter and Wall = 42mm x 4mm
  • Factory Length = 17.425 inch
  • Min. Length = 20 inch
  • Max. Length = 21-1/2 inch
  • Both Ends = 9/16 inch (14mm) Bolt
• JL Alpine IR Long Control Arm Kit - Rear Lower Adjustable - (part number 1310540):
  • Tube Diameter and Wall = 50mm x 5mm
  • Factory Length = 19-3/4 inch
  • Min. Length = 35-3/4 inch
  • Max. Length = 37-1/4 inch
  • Both Ends = 9/16 inch (14mm) Bolt

Note(s):

• Requires cutting/removal of factory control arm bracketry to install Alpine Long Arm Brackets.
• Alpine IR Long Control Arms and Alpine Long Control Arms MUST be used w/ Alpine Long Arm Bracket Kit (JL 2 Door 1958002; JL 4 Door part number 1958000) - Included.
• Install Time: 16 Hours
