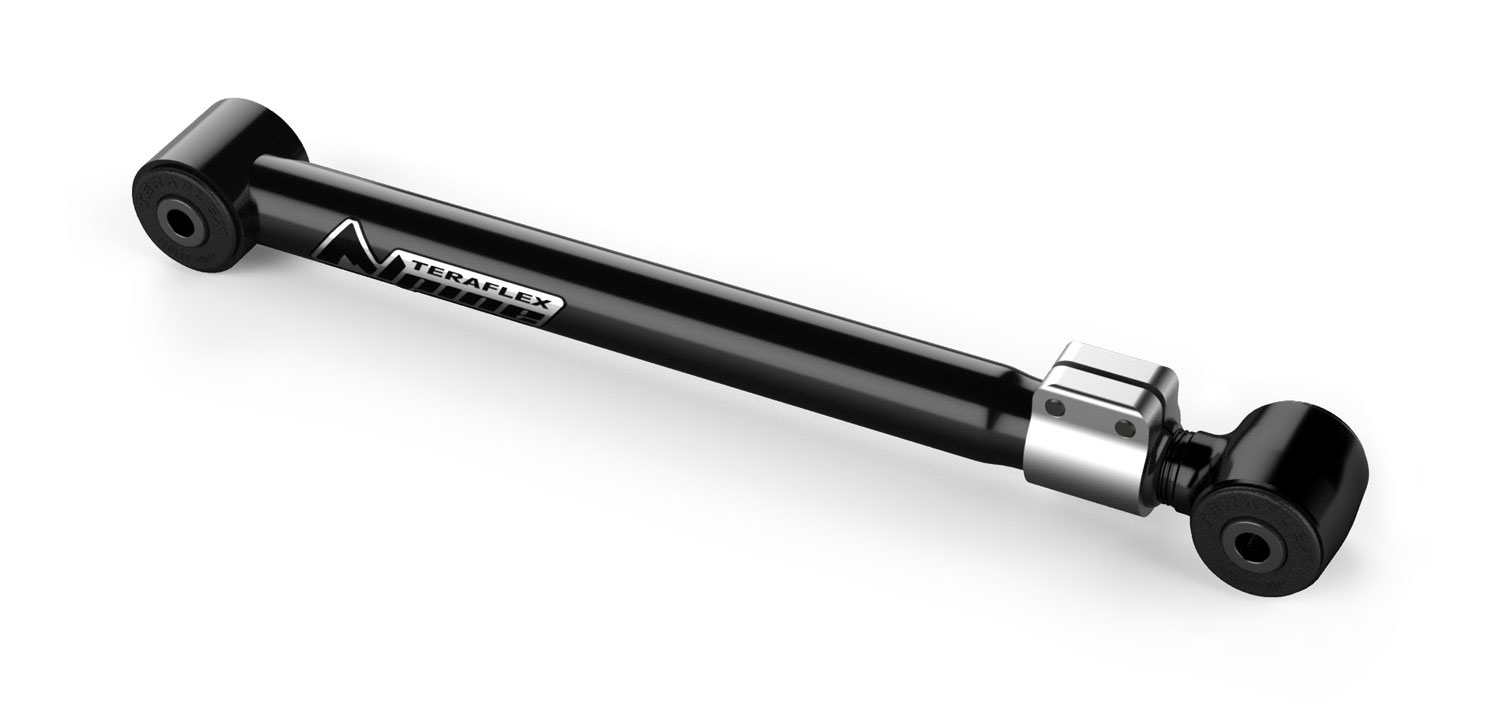

Jeep JL/JLU/JK/JKU Adjustable Rear Lower Alpine Flexarm 0-4.5 Inch/2-4 Inch Lift Driver Single TeraFlex

TeraFlex JL/JLU/JK/JKU Alpine Flexarm adjustable control arms provide maximum adjustability, dependability, and performance while retaining factory control arm mounting locations on JK Wrangler and JKU Wrangler Unlimited models with 0-4.5 inch or 2-4 inch lifts. Can be added to any existing suspension lift.

Fits:

• JL Wrangler (2-door)
• JLU Wrangler Unlimited (4-door)
• Lift Height: 0-4.5 inches
• And
• JK Wrangler (2-door)
• JKU Wrangler (4-door)
• Lift Height: 2.4 inches

Flexarm Specs:

• Tube Diameter and Wall: 1.625 inch x 0.157 inch (42mm x 4mm)
• Factory Length: 19.75 inches
• Min. Length: 19.8125 inches
• Max. Length: 21.0625 inches
• Both Ends: 9/16 inch (14mm) Bolt
• Thread: 1.25 inch-12 UNF
• Both Bushings: P/N 611011

Includes:

• Alpine Flexarm - driver side rear lower adjustable control arm
• Sold individually

Features and Benefits:

• Durable 1.625 inch x 0.157 inch (42mm x 4mm) wall DOM (Drawn Over Mandrel) tube provides maximum strength (upper long control arms)
• Fully-adjustable Alpine Flexarm control arms optimize pinion and caster angles, and tune anti-squat geometry for proper suspension alignment
• Re-centers axles in the wheel well for proper suspension movement or can be used to increase wheelbase
• Full-range of movement will not restrict articulation or flex off-road
• High-quality factory style bushings provide excellent noise, vibration, and harshness (NVH) damping and ride quality characteristics w/ zero maintenance
• Zero maintenance forged threaded joints for smooth quiet flex
• Premium black e-dipped coating provides superior durability and corrosion resistance on tube and forged rod end housing
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• TeraFlex Lifetime Warranty against defects

Notes:

• Alpine Flexarm Kit - Rear Upper Adjustable Control Arms (P/N 1415540) available as a set
• Alpine Flexarm - Passenger Side Rear Upper Adjustable Control Arm (P/N 1141551) available separately
• Replacement Bushing for both ends (P/N 611011) available separately
• Install Time: 1.5 Hours
• SKU: 1141541
