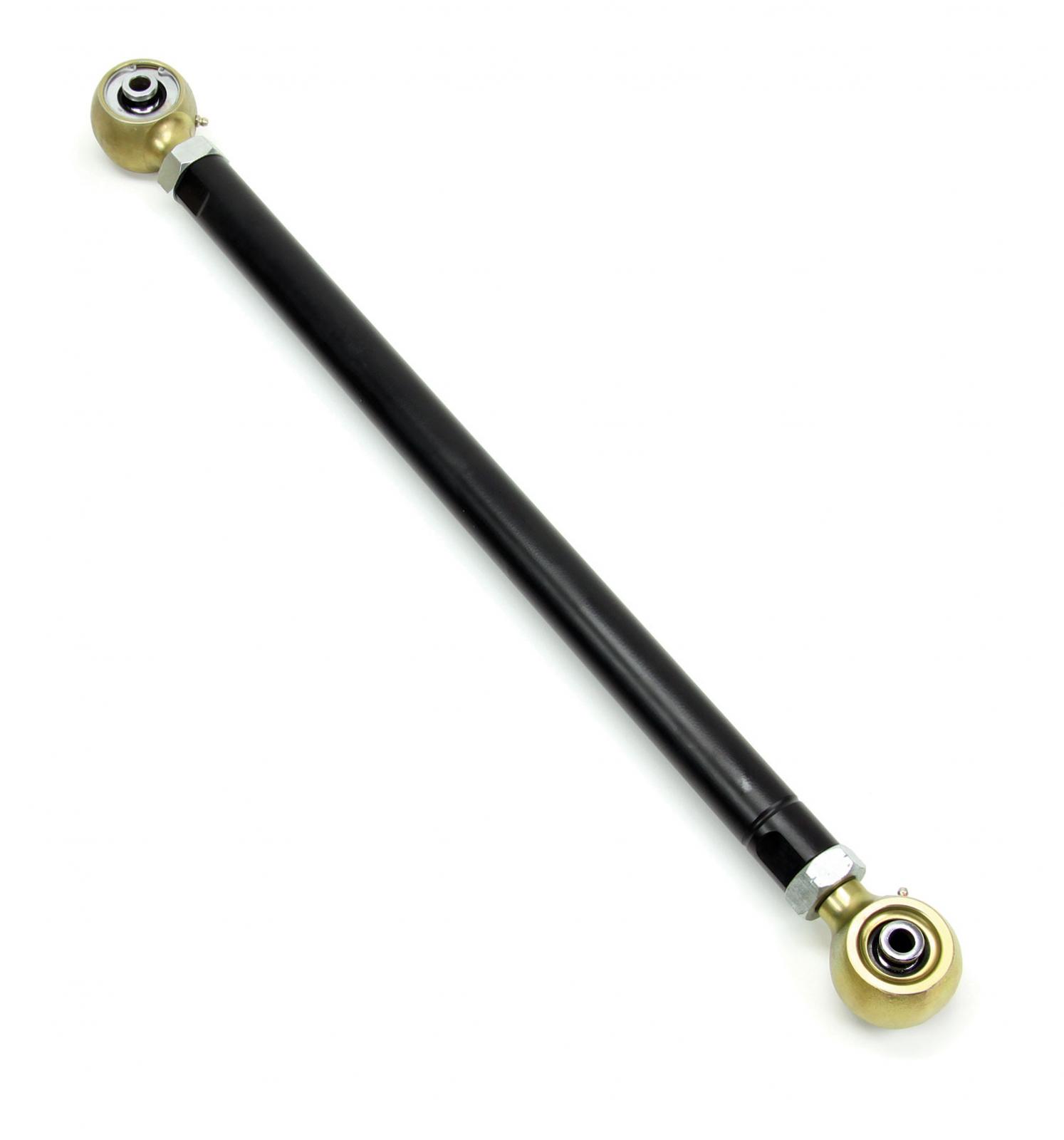

Jeep LJ Rear Upper Adjustable Pro LCG 4-Link Long Flexarm 3-6 Inch Lift Each 97-06 Wrangler LJ TeraFlex

TeraFlex TJ/LJ Rear Upper Adjustable LCG 4-Link Long Flexarms (3-6 inch Lift) provide maximum adjustability, dependability, and performance on TJ Wrangler and LJ Wrangler Unlimited models with 3-6 inch lifts.

These are the same flexarms used in our Pro LCG Long Flexarm Suspension Systems. Requires our TJ/LJ Rear Upper: Pro LCG 4-Link Long Flexarm Frame Bracket Kits (Driver Side P/N 97881; Passenger Side P/N 97882). Can also be used for custom link suspensions.

Fits:

• LJ Wrangler Unlimited (long wheelbase)

Specifications:

• Lift Height: 3-6 inch
• Tube Diameter and Wall: 1-3/4 inch x 0.281 inch
• Factory Length: 13-1/4 inch
• Min. Length: 31-9/16 inch
• Max. Length: 36-3/16 inch
• Uses 9/16 inch (14mm) Bolt
• 1-1/4 inch-12 UNF Thread
• 1-1/2 inch Wrench on Tube
• 1-7/8 inch Wrench on Jam Nut
• LJ rear upper: Adjustable Pro LCG 4-Link Long Flexarm - (2) required
• Sold individually

Features and Benefits:

• HD 1-3/4 inch x 0.281 inch wall DOM tubing flexarms for superior strength
• Adjustable from 31-9/16 inch to 36-3/16 inch (factory length: 13-1/4 inch)
• Fully adjustable flexarms optimize pinion and caster angles, and tune anti-squat geometry for proper suspension alignment
• Re-centers axles in the wheel well for proper suspension movement or can be used to increase wheelbase
• Full-range of movement will not restrict articulation or flex off-road
• Forged threaded joints
• Premium black e-dipped coating provides superior durability and corrosion resistance on tube and forged rod end housing
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• TeraFlex Lifetime Warranty against defects

Note:

• Also available as a pair (P/N 1447707)
• Install Time: 1.5 Hours
• SKU: 1649880
