Jeep TJ/LJ Adjustable Front Lower / Rear Lower Flexarm Kit 0-4 Inch Lift 97-06 Wrangler TJ/LJ TeraFlex

TeraFlex TJ/LJ Adjustable Flexarms (0-4 inch Lift) provide maximum adjustability, dependability, and performance while retaining factory control arm mounting locations on TJ Wrangler and LJ Wrangler Unlimited models with 0-4 inch lifts. Can be added to any existing suspension lift.
Fits:

• TJ Wrangler
• LJ Wrangler Unlimited (long wheelbase)

Specifications:

• Lift Height: 0-4 inch
• Tube Diameter and Wall: 1-3/4 inch x 0.281 inch
• Factory Length: 15-3/4 inch
• Min. Length: 14-15/16 inch
• Max. Length: 17-5/16 inch
• Uses 9/16 inch (14mm) Bolt
• 1-1/4 inch-12 UNF Thread
• 1-1/2 inch Wrench on Tube
• 1-7/8 inch Wrench on Jam Nut

Includes:

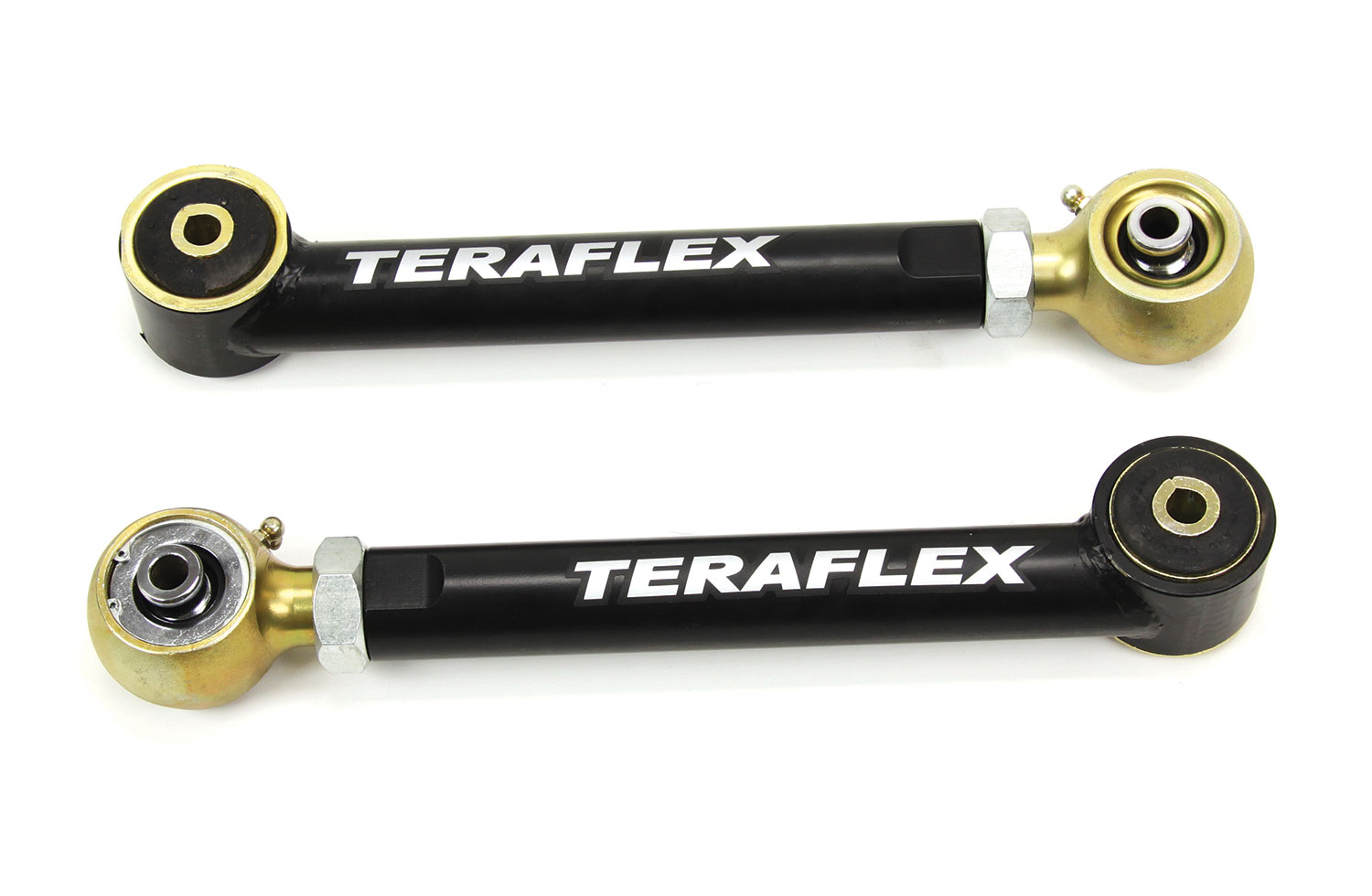

• Adjustable front lower / rear lower Flexarms (P/N 1615710) - pair
• Sold As A Kit

Features and Benefits:

• HD 1-3/4 inch x 0.281 inch wall DOM tubing flexarms for superior strength
• Adjustable from 14-15/16 inch to 17-5/16 inch (factory length: 15-3/4 inch)
• Fully adjustable flexarms optimize pinion and caster angles, and tune anti-squat geometry for proper suspension alignment
• Re-centers axles in the wheel well for proper suspension movement or can be used to increase wheelbase
• Full-range of movement will not restrict articulation or flex off-road
• Forged threaded joints
• Premium black e-dipped coating provides superior durability and corrosion resistance on tube and forged rod end housing
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• TeraFlex Lifetime Warranty against defects

Note:

• Also available individually (P/N 1615710)
• Install Time: 1.5 Hours
• SKU: 1615700
