Jeep TJ/LJ Front Lower/TJ Rear Lower Adjustable LCG Long Flexarm Kit 3-6 Inch Lift Each 97-06 Wrangler TJ/LJ TeraFlex

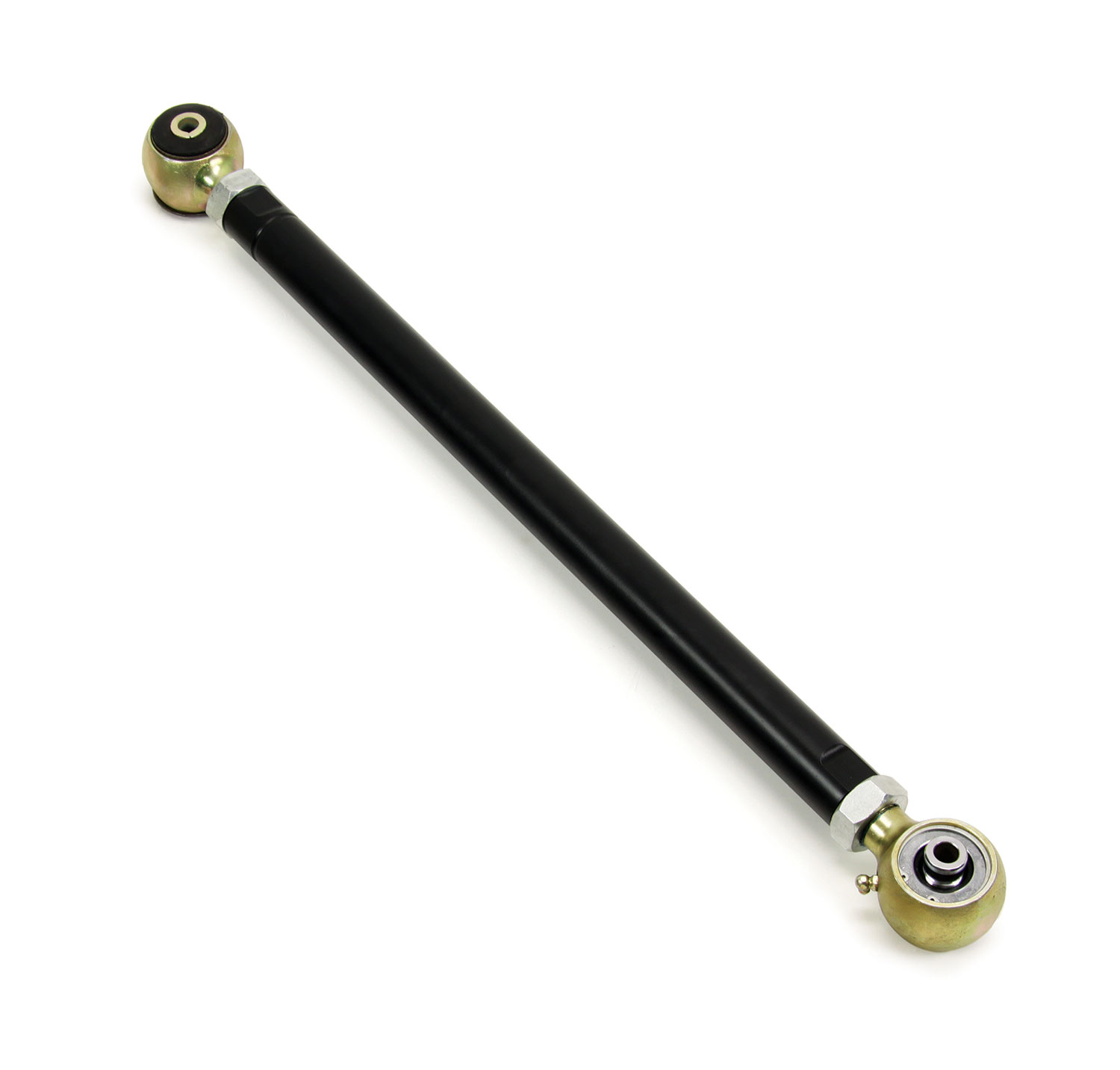

TeraFlex TJ/LJ Front Lower / TJ Rear Lower: Adjustable LCG Long Flexarms (3-6 inch Lift) provide maximum adjustability, dependability, and performance on TJ Wrangler and LJ Wrangler Unlimited models with 3-6 inch lifts.

These are the same flexarms used in our Pro LCG and Enduro LCG long arm suspension systems. Requires our TJ/LJ Lower: LCG Long Flexarm Frame Bracket Kit (P/N 1447701). Can also be used for custom link suspensions.
Fits:

• TJ Wrangler: front lower and rear lower
• LJ Wrangler Unlimited (long wheelbase): front lower

Specifications:

• Lift Height: 3-6 inches
• Tube Diameter and Wall: 1-3/4 inch x 0.281 inch
• Factory Length: 15-3/4 inch
• Min. Length: 31-9/16 inch
• Max. Length: 36-3/16 inch
• Uses 9/16 inch (14mm) Bolt
• 1-1/4 inch-12 UNF Thread
• 1-1/2 inch Wrench on Tube
• 1-7/8 inch Wrench on Jam Nut

Includes:

• TJ/LJ front lower/TJ rear lower: Adjustable LCG Long Flexarm - single (2 required)
• Sold individually

Features and Benefits:

• HD 1-3/4 inch x 0.281 inch wall DOM tubing flexarms for superior strength
• Adjustable from 31-9/16 inch to 36-3/16 inch (factory length: 15-3/4 inch)
• Fully adjustable flexarms optimize pinion and caster angles, and tune anti-squat geometry for proper suspension alignment
• Re-centers axles in the wheel well for proper suspension movement or can be used to increase wheelbase
• Full-range of movement will not restrict articulation or flex off-road
• Forged threaded joints
• Premium black e-dipped coating provides superior durability and corrosion resistance on tube and forged rod end housing
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• TeraFlex Lifetime Warranty against defects

Note:

• Also available as a pair (P/N 1447702)
• Install Time: 1.5 Hours
• SKU: 1978226
