JK Front 3 Link Kit Tube No Truss Artec Industries

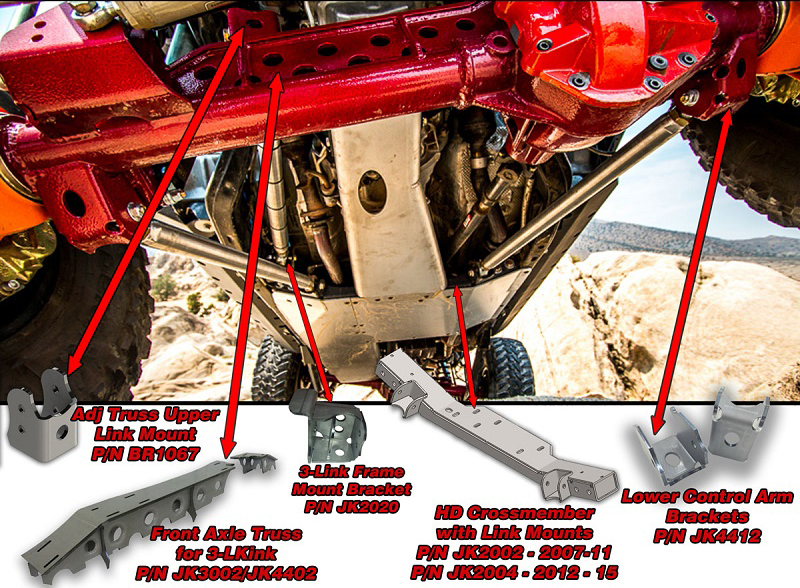

JK Front 3-Link Kit. If you are using one of our JK 1 Ton Swap Kits, this system works the same, you simply need to purchase the Kit without the truss. The Jeep Wrangler JK (Model Years 2007 - 2017) is a vehicle highly recognized Inch the Offroad world and is tops Inch Aftermarket support. As such there are a lot of off the shelve options to help you build your Jeep, but what about those that want to do more of the work on their own? Well that is where Artec Industries comes in. Over the past few years we have developed a number of Heavy Duty Components For the JK and now they can be used to build your very own 3 Link Kit. The JK 3 Link starts with the HD Crossmember with integrated Link Mounts. Inch addition to the added strength across the frame, we have added Inch 2 5/8 inch wide mounts. This will allow you to bolt Inch your lower control arms and this width is the most common For 1.25 inch Rod Ends. The 3-Link Frame Mount Bracket provides a stable and adequate mounting location For the upper link For the suspension. It mounts far back on the frame and utilizes a link nearly as long as the lowers to give the suspension unmatched articulation. On the axle side the Front Axle Truss For the 3 Link is the base. When you add this to your axle you not only add strength the the axle, but you also provide a well thought out place to install the Adjustable Upper Control Arm. The Adj. Upper Mount takes the place of the factory sheet metal upper and fork Style mount and allow you to run a flex Style joint. If you are using one of our JK 1 Ton Swap Kits, this system works the same, you simply need to purchase the Kit without the truss. Simply add Springs/Shocks or Coilovers, and extended brake lines and you are dialed in! For links, we have chosen to go with a custom set of 7075 machined links and 1.25 inch Rod Ends and misalignments, but DOM is what is offered Inch this Kit.

Features:

• Sold as Kit
• Includes:
• 3 - RH, 3 - LH - 1.25 inch -12TPI X 1.0 inch Rod End Kits
• 1 - JK 3 Link Frame Bracket
• 1 - Adjustable Truss Upper Link Mount
• 1 - JK Crossmember (optional)
• 1 - JK Front Axle Truss (optional)
• 3 - 4 FT 2.0 inch OD .250 inch Thick DOM Tubing (optional)
