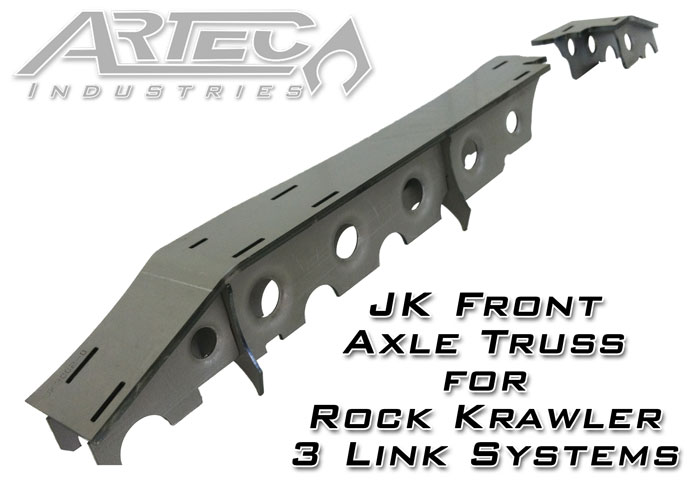

JK Front Axle Truss For Rock Krawler 3 Link Systems Artec Industries

JK Front Axle Truss For Rock Krawler 3 Link Systems. This heavy duty and light weight truss system and armor is designed to take serious abuse and reinforce your front 30 or 44 JK axle.

The 1/4 inch thick truss top and 10Ga. gusseting incorporates a unique design to strengthen both axle tubes, not just the long tube (commonly found Inch other designs). The precision cut and formed components of this setup ensure a hassle-free installation.

Features

• Sold as Each
• Axle model: JK 30 Axle
• 1/4 inch and 10 gauge (.130 inch) mild steel. Precision CNC cut and bent For great fitment.
• Truss is low profile to allow clearance above the axle.
• Truss spans length of long side AND short side.
• Truss is reinforced using interlocked 10 gauge thick gussets For maximum strength and easy assembly.
• Overall low profile design means your axle is stronger, sleaker, easier to fit into any vehicle, and less likely to interfere with vehicle components.
• This Kit Is Intended For Vehicle With At Least Minor Lifts.
• If Using With No Lift, Check Clearances Before Installing.
• Not Tested Inch Non-Us JKs With Diesel Engines or Right Hand Drive Axles.
• This Kit requires general welding and fabrication skills including welding to the cast center section.
• Welding should only be done by a competent welder.
• Artec Industries implies no guarantees or warranties and is not liable For improper installation.
• Some grinding and fitment may be required when installing this Kit.
• Every axle varies slightly and some fabrication may be required.
• In rare and extreme cases, the truss may come into contact with oil pan.
• Prior to operating the vehicle, remove the coil springs, cycle the suspension including full compression of both sides simultaneously and add bumpstop extensions to prevent damage to oil pan.
