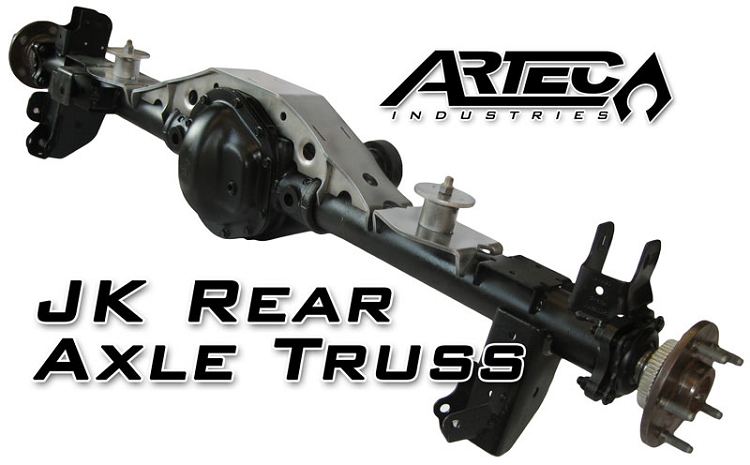

JK Rear Axle Truss Artec Industries

JK Rear Axle Truss. Artec Industries is excited to announce the New 44 JK Rear Axle Truss. This heavy duty truss system is designed to take serious abuse and reinforce your axle while also providing a flat surface to mount your upper control arms Inch a 4-link set up. The 1/4 inch thick truss top incorporates a unique design to strengthen both the axle and provide a low profile link mounting surface. The base truss itself spans about 26.5 inches across the center of your axle. Designed For JK Rear 44 axle. Trimming required For fitment on other centered rear 44 axles. The Jeep JK Rear 44 has a centered differential housing that measures approx. 16. 375 inch and the axle tube diameter is 3.25 inches. Other 44's will measure differently and have differing axle tube diameters. Please ensure your axle meets these dimensions prior to ordering.
Features:

• Sold as Pair
• 1/4 inch and 10Ga. thick mild steel truss. Precision CNC cut and bent For great fitment.
• Truss is low profile allowing ideal mounting height of an aftermarket 3 link suspension system, if desired.
• Truss spans entire length between spring buckets, aprox. 26.5 inch
• Truss is reinforced using interlocked 10 Ga. thick dimple died gussets For maximum strength and easy assembly.
• Overall low profile design means your axle is stronger, sleaker, and less likely to interfere with vehicle components.
