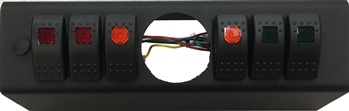

JK Switch Panel 6 Switch W/2-1/16 Inch Diameter Empty Gauge Hole 09-17 Wrangler JK sPOD

JK Switch Panel 6 Switch W/2-1/16 Inch Diameter Empty Gauge Hole 09-17 Wrangler JK Multi Color. This panel has an empty 2-1/16 inch diameter hole for most 2 inch inch diameter gauges. Be sure that you choose a gauge that does not have a large backspace requirement.

• Gauge Not included in system.
• This bezel Does Not accommodate new Genesis Adapter.
• If using a Aeroforce Gauge, request their longer harness.

Each system includes the following:

• All required mounting brackets and hardware.
• System will come pre-wired ready to install.

Included:

• Switch panel, six Contura switches, 2 Red, 2 Amber and 2 Green actuators (installed and pre-wired), two piece Wire Harness set with 8 multi color leads utilizing 18 gauge wires. Each end has an automotive connector made by Deutsch.
• All wires are wrapped in high temp abrasion resistant nylon braided sleeving.
• The Source 6 Circuit power distribution system includes:
• 12 position terminal block for accessory attachment
• 6 Bosch style cube style relays (SPST 40 amp) (plug-in style)
• 6 ATO style automotive fuses 3 15 amp and 3 30 amp supplied
• 6 Diodes to protect sensitive accessories such as LED lights from field collapse
• Inline 50amp manual resetting circuit breaker
• 8 gauge power leads with crimped and soldered terminal for connection to the battery
• Integrated LVCO (Low-Voltage-Cut-Off) circuit that detects the battery voltage and will cut-off at 11.2VDC and cuts-back in at 12.8VDC
• so there is enough juice to start your vehicle in case you left an accessory on!
• Fuse for LVCO which can be removed to bypass the LVCO
• Mounting bracket for Jeep Wranglers
