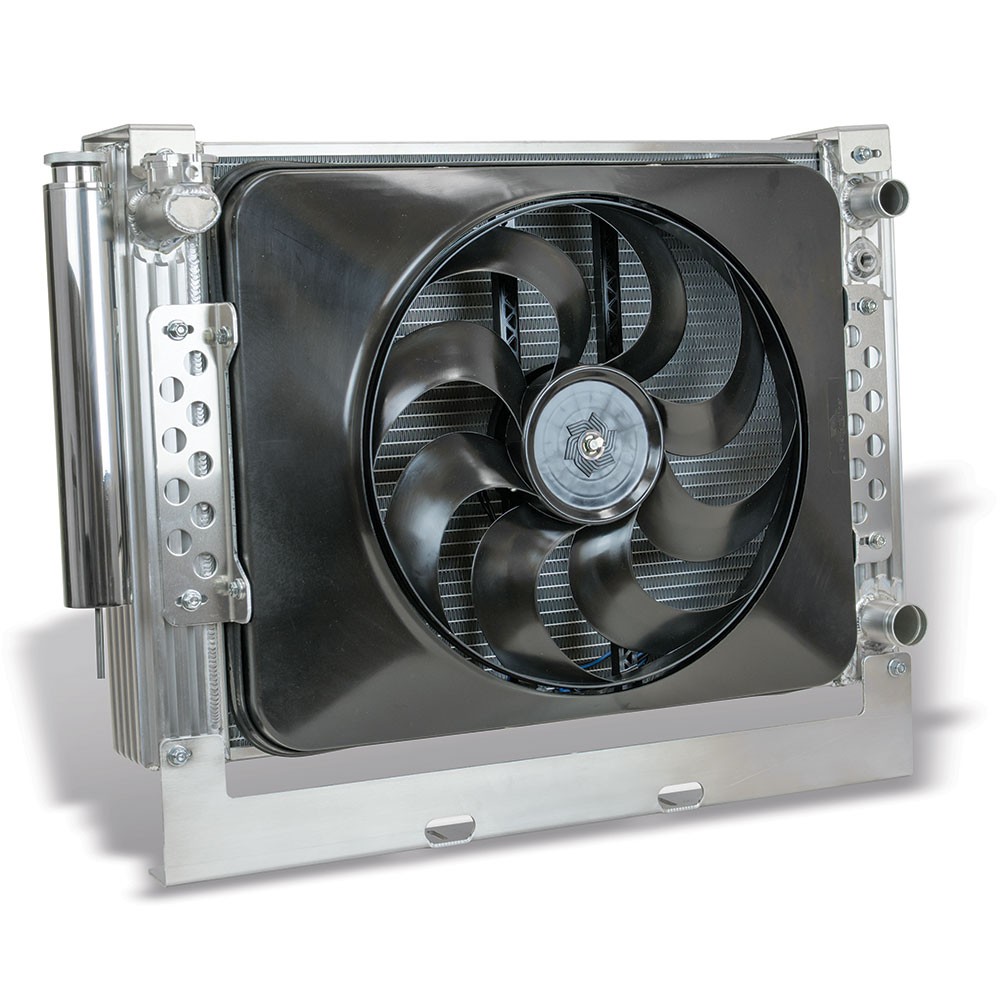

LS Conversion Direct Fit Flex-a-fit Aluminum Radiator And Black Magic Fan Combination 79-93 Ford Mustangs Flex-A-Lite

Direct-fit Flex-a-fit aluminum radiator and Black Magic fan combination for 79-93 Ford Mustangs with LS engine conversions. This is a direct bolt-in Flex-a-fit aluminum radiator for the Fox Body Mustang with an LS engine conversion. Flex-a-fit aluminum radiators made by Flex-a-lite feature patented sidetank tank technology. The T channels offer 130 percent better heat transfer, a durable mounting system for the radiator, electric fan and optional oil cooler or expansion tank. The dual 1-inch all-aluminum radiator core is hand welded in the U.S. to the Flex-a-fit sidetanks. This radiator comes with a Flex-a-lite 15-inch Black Magic Xtreme S-Blade electric fan with adjustable thermostat controller.
Details:

• Fits 79-93 Ford Mustang
• 78 percent more coolant capacity
• Designed for LS engine conversions
• O.E. radiator mounting points
• Brackets are included for no-drill installation
• Includes overflow tank
• 2-row, 1-inch tubes
• 3,300 cfm of airflow
• Height (inches) 18 1/2 in.
• Width (inches) 27 3/4 in.
• Depth (inches) 7 in.
• Depth (rounded up) 7 in.
• Inlet Side Passenger Side
• Air Flow (cfm) 3,300
• Fan Diameter (inches) 15 in.
• Number of Blades 8
• Amperage Draw 18
• Fuse Rating (amp) 40
• Engine V6, V8
