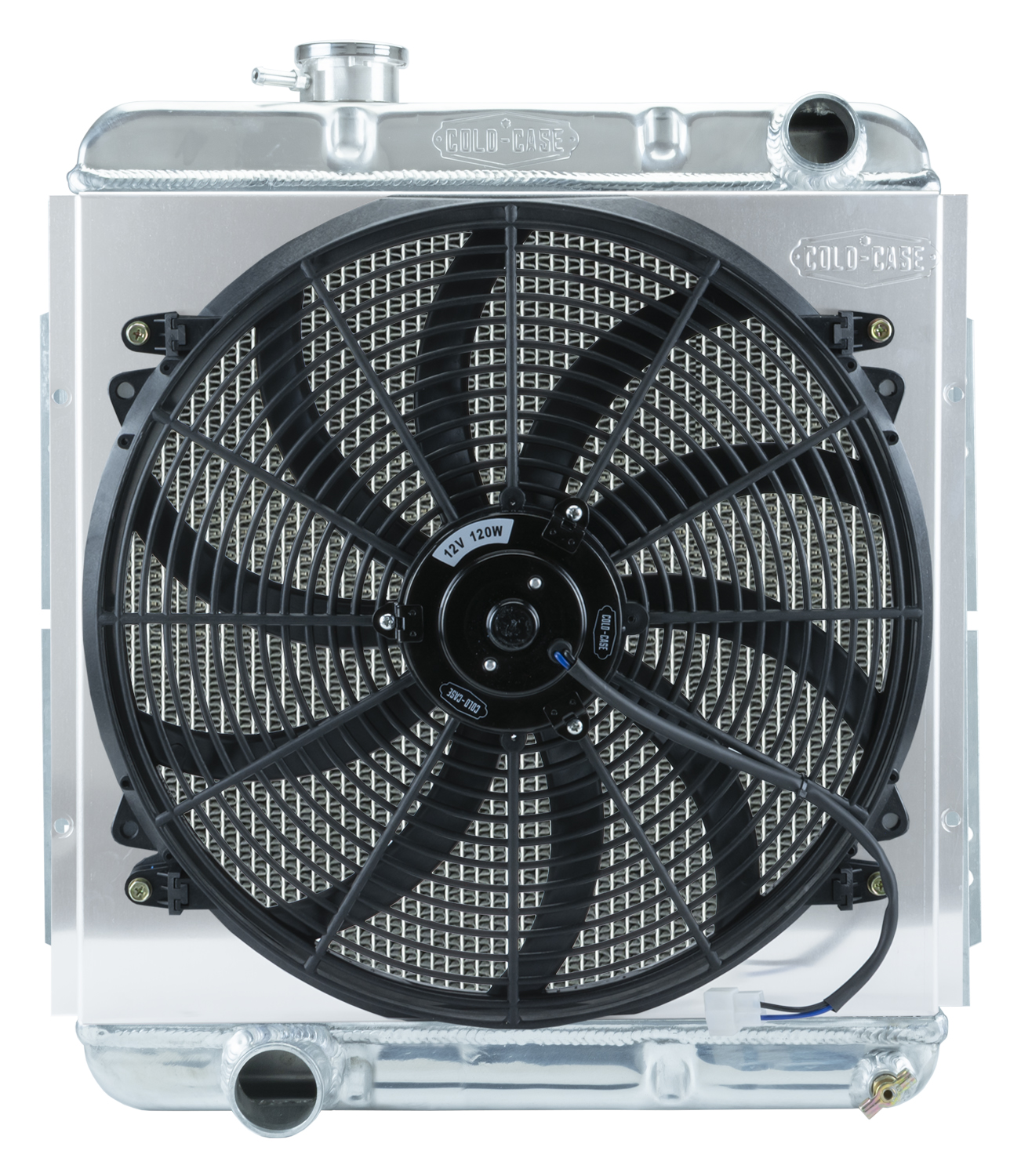

Mustang Aluminum Radiator and 16 Inch Fan Kit 64-66 Mustang 5.0 Manual Cold Case Radiators

1964.5-1966 Ford Mustang Aluminum Performance Radiator and 16 inch Fan Shroud Kit. MT Cars. Same as FOM564, but with staggered inlet/outlet for later model engine swap. These COLDCASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.

Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLDCASE.
Details:

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• (2) 1.25 inch Tubes
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For manual trans
• Direct fitment for 64.566 Mustang w/ 5.0L V8

Radiator Specs

• Core Height 16.5 inch
• Core Width 16.85 inch
• Overall Height 21 inch
• Overall Width 19.6 inch
• Overall Thickness 3 inch
• Tubes (2) 1.25 inch Tubes
