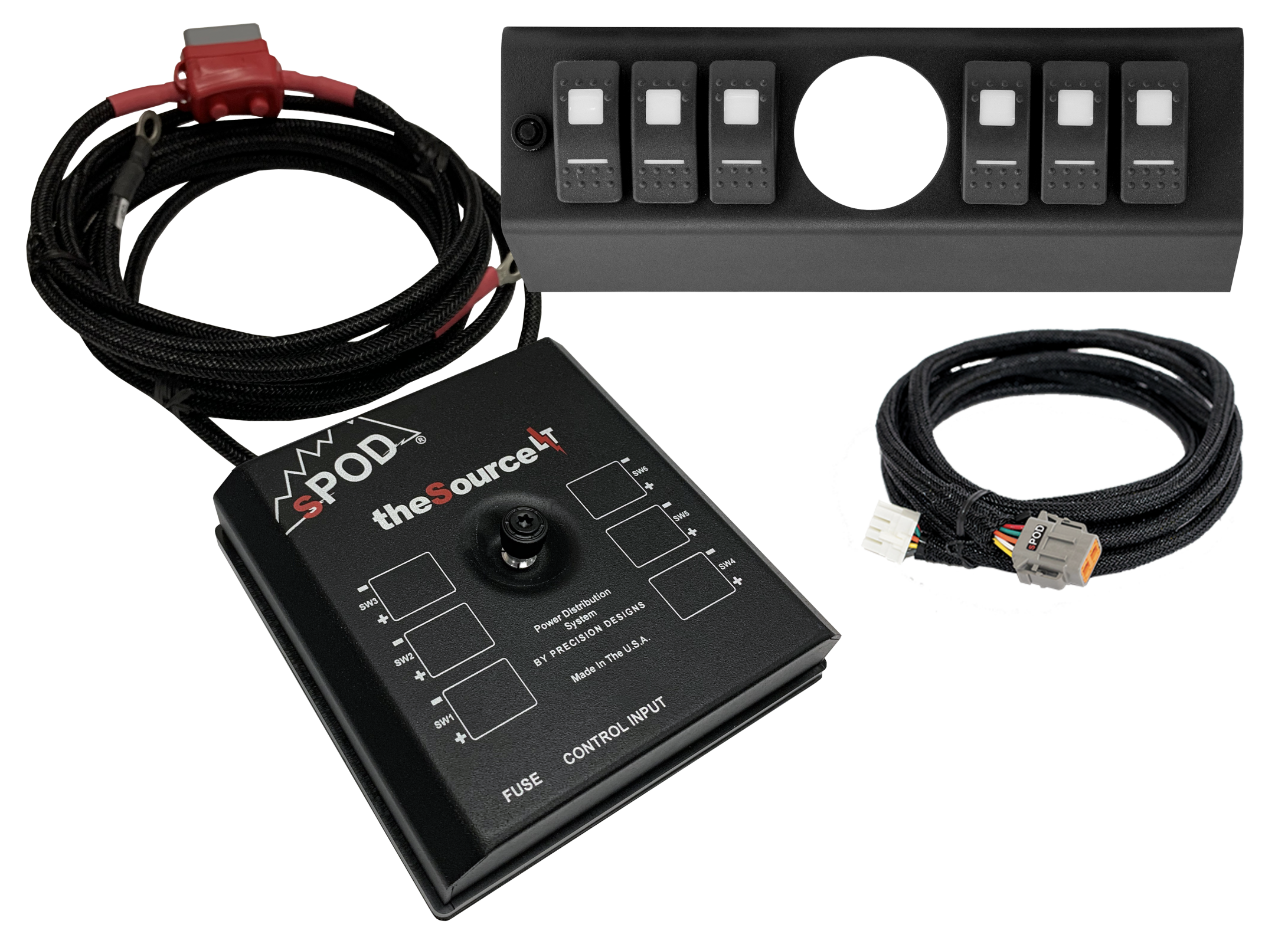

SourceLT w/ Opening (2 1/16 Inch) for AeroForce Gauge and LED Switch Panel for JK 2009-2018 sPOD

The SourceLT will save hours of wiring and installation time! It is a small, solid-state 6-circuit control system that provides a clean (one cable into the cab!) and safe way to power and control 12VDC accessories. Due to the small footprint of the SourceLT, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle's electrical system. It's the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.
Features:

• SourceLT w/ Opening (2 1/16 Inch) for AeroForce Gauge and Amber LED Switch Panel for JK 2009-2018
• LED Color: Amber
• 6 circuits rated at 30 amps at 12.5 VDC per circuit
• 12-position terminal block (easily attach accessories)
• Controller cable (10 foot) for simple plug-n-play connectivity to the switch controller
• Integrated low voltage cutoff (LVCO) battery protection w/ optional override
• Self-healing fault protection circuits (from 1.5 to 30amps)
• Current-sensing MOSFETs controlled by a microprocessor (no fuses and no relays)
• 50amp auto-resetting circuit breaker
• Nylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacket
• Operates on 12VDC
• Built-in Bluetooth capabilities for remote control
• Protection against: overheating, over-current, shorts, reverse polarity and field collapse
• On-demand wireless software updates/upgrades

Hardware:

• Powder coated steel base w/ built in hardware
• Silicone gasket for weatherproofing
• Simple thumb screw fastening aluminum lid with convenient silkscreened outlines for placement of supplied legends
• Universal and vehicle specific mounting options
• Robust insulated base and cover

Features Available Through sPOD Mobile App (free):

• Each switch can be programmed for:
  • Dimming
  • Strobe
  • Flash
  • Momentary
  • Switch Linking
  • On-Road and Off-Road mode of operation

Switch Panel:

• Switch panel with six dual lit LED switches (installed and pre-wired)
• All wires are wrapped in high-temp abrasion resistant nylon braided sleeving.
• Comes with a 10 foot control cable
• Aluminum panels are formed, welded and powder coated
• Carling Technologies Contura switches (certified to IP66/68 - marine/harsh environment)
• Controlled lower pilot light (push button)
• Custom laser-etched rockers are available (sold separately)
• Auto safe system shutdown when panel is unplugged
• This panel has an empty 2-1/16 inch diameter hole for most 2 inch diameter gauges. Be sure that you choose a gauge that does not have a larger backspace requirement.
• Gauge not included in system.
• This bezel does not accommodate the newer Genesis Adapters.
• If using an Aeroforce Gauge, request their longer harness.

Bluetooth Requirements:

• Access to iTunes or Google Play Store to download the sPOD app
• Bluetooth 4.0 compatible
• Compatible with Android devices running 8.0 Oreo (API 26) or later
• Compatible with iOS 11 or newer, iPhone 7s or newer, iPad 2 or newer, iPad mini
• Must have existing sPOD system
