The 2005 and up Toyota Tacoma: Falcon Sport Leveling Shock Absorber Systems deliver increased stability and control as well as improved ride quality and comfort both on and off-road. These compact and affordable shocks are ideal for daily driven vehicles.
Zone Rate Tuning (ZRT) manipulates the factory linear-rate spring tuning to produce three distinct performance zones with a more exaggerated spring curve to tackle various driving conditions.
An internal negative-rate spring offsets the factory spring's preload while in the Extension Zone. This eliminates top out clunk and shock stress at full extension, while softening tire landing and reducing body roll on impact during aggressive driving.
The factory spring rate is unaffected in Drive Zone for a comfortable and controlled ride. A provided progressive microcellular bump stop effectively retunes the spring rate while in Compression Zone to reduce bottoming and body roll during aggressive driving.
Traditional velocity sensitive shock absorbers react quickly during low speed driving causing excessive head toss on rough terrain - or even driveways. Conventional damping then firms up during faster speeds resulting in a jarring ride.
Falcon's proprietary Volume Optimized Damping (VOD) features a digressive linear valve that produces quicker ramp up for increased damping volume, which improves vehicle feedback and control during low-speed driving. VOD also improves the shock absorber's ability to reduce bottoming out at full compression during faster speeds or over uneven terrain.
Fits:
- 2005-2015 Toyota Tacoma (2nd-gen)
- 2016 and up Toyota Tacoma (3rd-gen)
Leveling Height:
- Front: 0-2.25 inch
- Rear: Stock

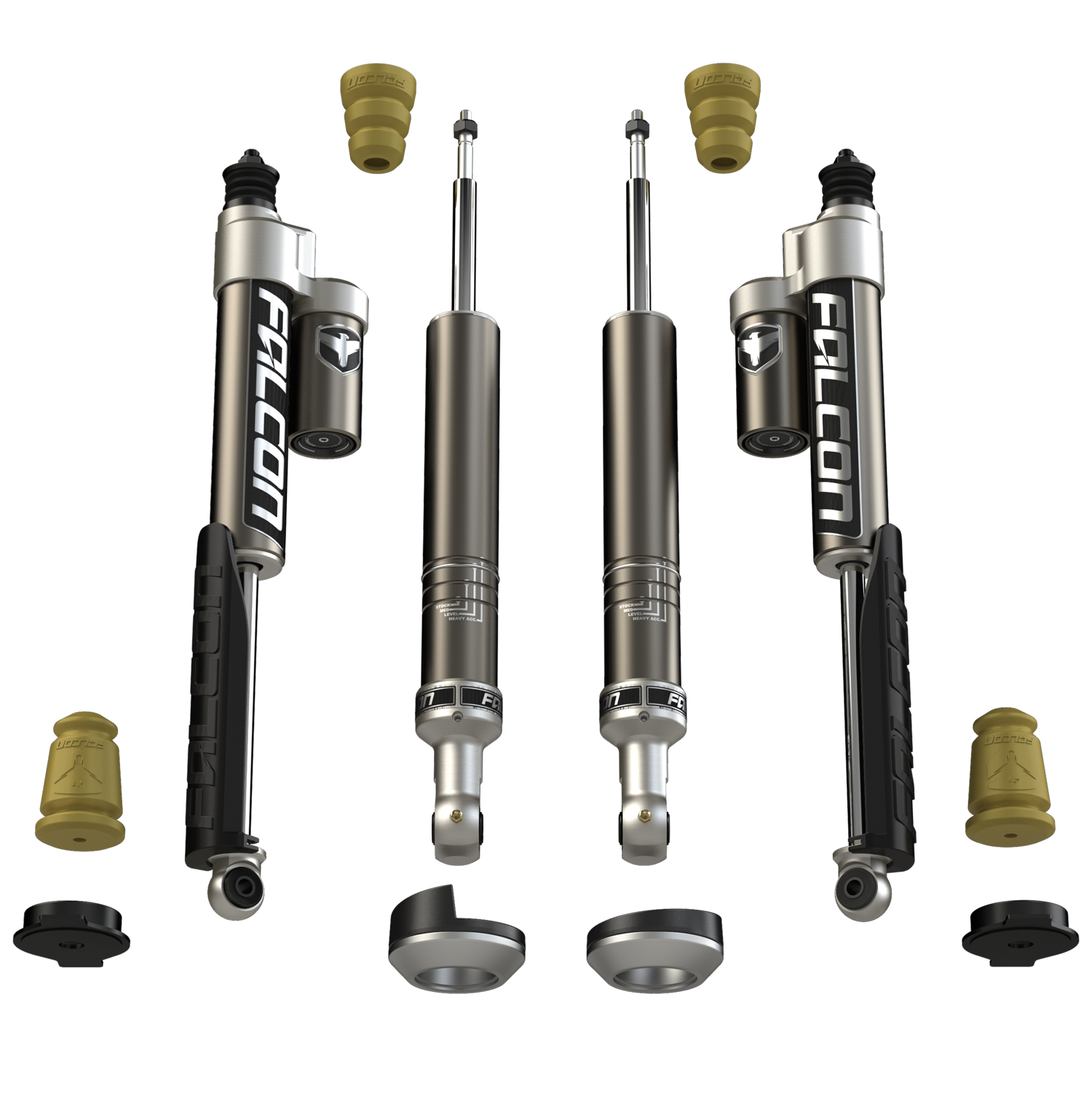

Includes:
- Front Components:
- Leveling monotube shock absorbers
- Progressive microcellular foam bump stops
- Billet coil spring carrier
- Injection molded squeak-free spring isolator
- All necessary hardware
- Rear Components:
- Piggyback shock absorbers
- Progressive microcellular foam bump stops
- Bump stop cups
- Roost guards
- All necessary hardware
Features and Benefits:
- Falcon Sport Leveling:
- Front leveling monotube shock absorbers w/ fixed rate damping optimized for on- and off-road driving
- Rear piggyback (Tacoma) shock absorbers w/ fixed rate damping optimized for on- and off-road driving
- Piggyback Shock Absorbers:
- Piggyback design features increased oil and gas capacity vs. monotube or twin-tube designs reducing heat buildup for more consistent performance
- Piggyback fluid passage design flows 6 times more oil than restrictive reservoir hose designs as well as eliminates common leakage issues found in banjo and swivel fittings
- Falcon Truck Shocks:
- All testing done on E-rated tires (worst possible ride)
- Front shock features multiple snap ring grooves to level out front end
- Snap ring grooves maintain set ride height (instructions laser etched on shock body)
- Largest shock body that will fit w/out modifications
- Zone Rate Tuning (ZRT) retunes the factory spring in the Extension, Drive and Compression zones
- Negative spring inside shock body eliminates top out clunk, softens tire landing, and reduces body roll and stress on shock
- Application-specific tuned bump stop reduces bottoming out and body roll
- High-quality spherical bushings (when applicable)
- Zerk fittings to lube bushing (when applicable)
- All Falcon Shocks:
- Vehicle-specific shock absorbers
- Race-inspired performance for increased vehicle stability
- Improved dynamic roll control and low speed damping
- Dramatic improvement in on-road comfort and off-road performance
- Optimized fitment for clearance during full suspension travel
- 2.25 inch shock body provides optimal performance
- 6061-T6 aluminum alloy shock body resists wear and protects internal components while providing superior heat dissipation
- Smooth honed internal shock body surface for long-term performance
- 3/4 inch induction hardened chrome plated shaft resists rock damage and corrosion as well as prevents shaft buckling
- Maximum shaft diameter allows for more precise tuning
- Hard anodized billet piston
- 1-piece Teflon bronze piston wear band w/ O-ring
- Digressive linear piston and base valve technology
- Volume Optimized Damping (VOD) features a digressive linear piston for quicker ramp up and increased damping volume
- Inline OGS (Oil/Gas Separator) prevents cavitation
- Red Line full synthetic shock oil with high viscosity index of 519 for consistent performance across all temperatures and reduced shock fade
- Synthetic formula also contains special anti-wear and lubricity agents for excellent thermal stability
- 1,000-hour salt spray corrosion resistance test on all hardware
- Serviceable and rebuildable (factory serviced)
- Built in-house at the TeraFlex Falcon Shock Division
- Patent pending design
- 3-year warranty
Note(s):
- Never exceed factory tow/haul ratings.
- Install Time: 3.5 Hours
