ZJ Rear Axle Truss Dana 44A 93-98 Cherokee ZJ TNT Customs

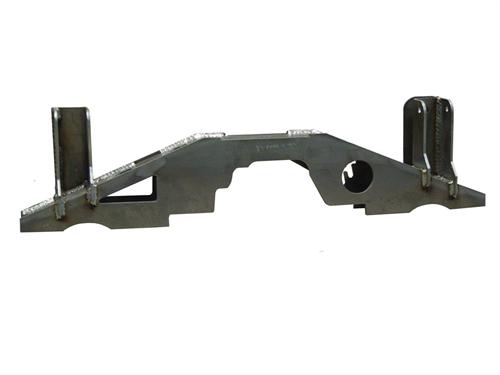

ZJ Rear Axle Truss Dana 44A 93-98 Cherokee ZJ TNT Customs. TNT Customs 3/16 inch formed steel axle truss is ideal for your factory Aluminum housing Dana 44. With the upper control arm mounts already located in the factory positions for your Jeep Grand Cherokee ZJ our Dana 44 Aluminum Housing axle truss makes beefing up your factory axle a breeze. TNT's rear UCA mounts provide you with raised mounting holes to improve control arm geometry on short arm lifted rigs. By utilizing the higher mounting location as well as our high clearance lower control arm mounts you can retain near factory geometry with up to 3-3.5 inch of lift providing you with better driveability over a standard control arm mounting.
Details:

• 3/16 inch steel plate construction
• Raised Upper Control Arm Mounting for improved geometry
• CNC cut and Jig welded
• Manufactured in the USA
• Brackets Available in the related products tab
• Drivers Side UCA Mount
• Passenger Side UCA Mount
• Heavy Duty Trackbar Mount
• Heavy Duty Coil Buckets and Shock Mounts
• HD High Clearance LCA Mounts

TNT Custom recommends the use of at least adjustable upper control arms when installing our truss. Fixed length lowers can be utilized although when combined with our high clearance lower control arm mounts 1 inch of wheelbase stretch will occur. This additional wheelbase is beneficial in both fixed and adjustable control arm applications when trimming is needed to run larger tires.

Due to the construction of the ZJ Grand Cherokee rear wheel wells it is easier to trim the back of the wheel well when additional tire clearance is needed. By moving the axle rearward we give you the ability to better utilize this extra space as well as increase clearance in front of the tire. TNT HD Coil Buckets are designed so that proper coil placement can still be achieved when moving the axle rearward.
Control Arm Mounts are not compatible with factory control arms.
Minimum of 3 inch lift is required for install.
All TNT axle trusses require welding to install. We strongly recommend using a certified welder for any welding tasks.
